BAS40-06-7-F

The BAS40-06-7-F is a Schottky barrier diode manufactured by Diodes Incorporated, designed for various applications in electronic circuits. Here’s a detailed description of its features and specifications:

General Description:

The BAS40-06-7-F is a small-signal Schottky diode that is optimized for low forward voltage drop and fast switching speeds. It is commonly used in applications such as rectification, clamping, and signal detection due to its efficient performance characteristics.

Key Features:

• Low Forward Voltage Drop: The diode exhibits a low forward voltage drop, typically around 0.3V at a forward current of 1A, which enhances efficiency in power applications.
• Fast Switching Speed: The Schottky design allows for rapid switching, making it suitable for high-frequency applications.
• High Surge Current Capability: The diode can handle high surge currents, making it robust for transient conditions.
• Low Reverse Leakage Current: The reverse leakage current is minimal, which is advantageous for battery-operated devices and low-power applications.

Electrical Specifications:

• Maximum Reverse Voltage (VR): The BAS40-06-7-F has a maximum reverse voltage rating of 60V, allowing it to be used in a variety of voltage environments.
• Forward Current (IF): The maximum forward current rating is typically around 1A, making it suitable for low to moderate current applications.
• Reverse Recovery Time (trr): The diode features a very short reverse recovery time, which is critical for high-speed switching applications.

Package Information:

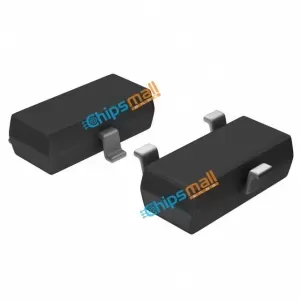

• Package Type: The BAS40-06-7-F is available in a compact SOT-23 package, which is ideal for space-constrained applications.
• Dimensions: The SOT-23 package dimensions are typically around 2.9mm x 1.3mm x 1.1mm, making it suitable for surface-mount technology (SMT) applications.

Applications:

• Power Supply Circuits: Used for rectification in power supply circuits to convert AC to DC.
• Signal Clamping: Effective in clamping applications to protect sensitive components from voltage spikes.
• RF Applications: Suitable for radio frequency applications due to its fast switching characteristics.
• Battery Protection: Commonly used in battery-powered devices to prevent reverse current flow.

Conclusion:

The BAS40-06-7-F from Diodes Incorporated is a versatile Schottky diode that combines low forward voltage drop, fast switching speed, and high reliability, making it an excellent choice for a wide range of electronic applications. Its compact SOT-23 package further enhances its usability in modern electronic designs.
