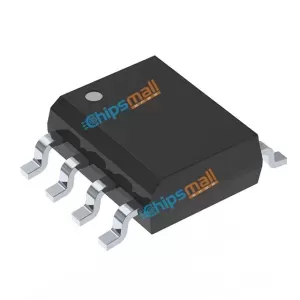

DMN6040SSD-13

The DMN6040SSD-13 is a N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) manufactured by Diodes Incorporated. This component is designed for high-efficiency switching applications and is particularly suitable for power management in various electronic devices.

Key Features:

1. Type: N-channel MOSFET
2. Voltage Rating: The DMN6040SSD-13 has a maximum drain-source voltage (V_DS) of 40V, making it suitable for applications that require moderate voltage handling.
3. Current Rating: It can handle a continuous drain current (I_D) of up to 60A, which allows it to manage significant power loads effectively.
4. R_DS(on): The on-resistance (R_DS(on)) is typically low, around 10 mΩ at a gate-source voltage (V_GS) of 10V. This low on-resistance contributes to reduced power losses during operation, enhancing overall efficiency.
5. Gate Threshold Voltage (V_GS(th)): The gate threshold voltage is typically in the range of 1V to 3V, allowing for easy drive with standard logic levels.
6. Package Type: The DMN6040SSD-13 is housed in a compact SO-8 package, which is suitable for surface mount applications. This package design helps in saving space on printed circuit boards (PCBs) and facilitates better thermal management.
7. Thermal Resistance: The device features a low thermal resistance, which aids in heat dissipation during operation, ensuring reliability and longevity in various applications.
8. Applications: It is commonly used in power supplies, motor drivers, and other applications requiring efficient switching and control of power.

Electrical Characteristics:

• Maximum Gate-Source Voltage (V_GS): ±20V
• Maximum Power Dissipation (P_D): Typically around 45W, depending on the thermal management in the application.
• Body Diode Characteristics: The DMN6040SSD-13 includes an intrinsic body diode, which allows for reverse current flow and can be beneficial in certain circuit configurations.

Performance:

The DMN6040SSD-13 is designed to provide high-speed switching capabilities, making it ideal for applications that require rapid on/off control. Its low on-resistance minimizes conduction losses, which is critical in battery-powered devices and energy-efficient systems.

Conclusion:

Overall, the DMN6040SSD-13 from Diodes Incorporated is a robust and efficient N-channel MOSFET that is well-suited for a variety of power management applications. Its combination of high current handling, low on-resistance, and compact packaging makes it a popular choice among engineers and designers looking to optimize performance in their electronic designs.
