EFR32BG22C224F512GM32-CR

The EFR32BG22C224F512GM32-CR is a highly integrated, low-power Bluetooth System-on-Chip (SoC) designed by Silicon Labs, specifically tailored for IoT applications. This chip is part of the EFR32BG22 family, which is known for its robust performance in wireless communication, particularly in Bluetooth Low Energy (BLE) applications.

Key Features:

1. Core Architecture:

   • The EFR32BG22C224F512GM32-CR is built on a 32-bit ARM Cortex-M33 core, which operates at a frequency of up to 38 MHz. This architecture provides a balance of performance and power efficiency, making it suitable for battery-operated devices.

2. Memory:

   • The chip includes 512 kB of Flash memory and 32 kB of RAM. This ample memory capacity allows for complex applications and firmware, enabling developers to implement sophisticated features without the need for external memory.

3. Wireless Communication:

   • It supports Bluetooth 5.0, which enhances data transfer rates and extends the range of communication. The chip is optimized for low power consumption, making it ideal for applications that require long battery life.

4. Integrated Peripherals:

   • The EFR32BG22C224F512GM32-CR features a variety of integrated peripherals, including:
     • Multiple GPIO pins for interfacing with sensors and other components.
     • Analog-to-Digital Converters (ADC) for processing analog signals.
     • Timers and PWM outputs for precise control of devices.
     • Serial communication interfaces such as UART, SPI, and I2C for connecting to other devices.

5. Power Management:

   • The chip includes advanced power management features, allowing it to operate in various low-power modes. This is crucial for IoT devices that need to conserve battery life while maintaining connectivity.

6. Security Features:

   • The EFR32BG22C224F512GM32-CR incorporates hardware security features, including a secure bootloader and cryptographic accelerators, ensuring that data transmission is secure and that the device is protected against unauthorized access.

7. Development Support:

   • Silicon Labs provides a comprehensive development ecosystem for the EFR32BG22, including software development kits (SDKs), development boards, and extensive documentation. This support facilitates rapid prototyping and development of applications.

8. Package and Dimensions:

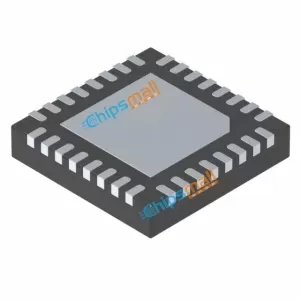

   • The chip is housed in a compact QFN (Quad Flat No-lead) package, which is designed for efficient thermal performance and space-saving in PCB layouts. The specific dimensions and pin configuration can be found in the datasheet.

Applications:

The EFR32BG22C224F512GM32-CR is suitable for a wide range of applications, including:

• Smart home devices (e.g., smart locks, lighting controls)
• Wearable technology (e.g., fitness trackers, health monitors)
• Industrial IoT applications (e.g., asset tracking, environmental monitoring)
• Consumer electronics that require Bluetooth connectivity.

In summary, the EFR32BG22C224F512GM32-CR from Silicon Labs is a versatile and powerful SoC that combines advanced wireless communication capabilities with low power consumption, making it an excellent choice for modern IoT applications.
