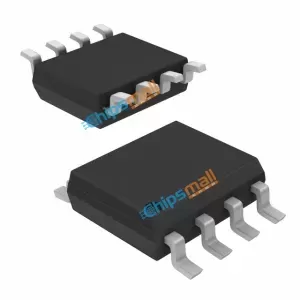

HCPL-0630-500E
- Manufacturer's Part No.:HCPL-0630-500E
- Manufacturer:
- Categories:
- Sub-Categories:
- Series:-
- Description:-
- Datasheet:
- Quantity:Buy NowAdd to Cart
- Payment:
- Delivery:
- In Stock: 38000
- Available: 2074
Reference Price(In US Dollars)
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1+ | US $1.86660 | US $1.87 |
| 10+ | US $1.24440 | US $12.44 |
| 30+ | US $0.93330 | US $28.00 |
| 100+ | US $0.74664 | US $74.66 |
| 500+ | US $0.68442 | US $342.21 |
| 1000+ | US $0.62220 | US $622.20 |
Do you want a lower wholesale price? Please send us an inquiry, and we will respond immediately.
- Description
- Alternatives
- Shopping Guide
Description
The Broadcom® 6N137, HCPL-26xx/06xx/4661, HCNW137/26x1 are optically coupled gates that combine a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification up to 15,000 V/µs at Vcm = 1000V.
Features
15 kV/µs minimum Common Mode Rejection (CMR) at
VCM= 1 kV for HCNW2611, HCPL-2611, HCPL-4661,
HCPL-0611, HCPL-0661
High speed: 10 MBd typical
LSTTL/TTL compatible
Low input current capability: 5 mA
Guaranteed AC and DC performance over industrial
temperature: –40°C to +85°C
Available in 8-Pin DIP, SOIC-8, widebody packages
Strobable output (single channel products only)
Functional Equivalent (FE) materials, including Fused Filament Fabrication (FFF) form, assembly, and functionally compatible substitute materials.
