LR8K4-G
- Manufacturer’s Part#:LR8K4-G
- Manufacturer:
- Categories:
- Sub-Categories:
- Series:-
- ECAD Model:
- Description:IC REG LINEAR POS ADJ 10MA TO252
- Datasheet:
- Quantity:Buy NowAdd to Cart
- Payment:
- Delivery:
- In Stock: 61901
- Available: 60000
Reference Price(In US Dollars)
Qty | Unit Price | Ext.Price |
---|---|---|
1+ | US $2.61456 | US $2.61 |
10+ | US $2.35310 | US $23.53 |
30+ | US $1.83019 | US $54.91 |
100+ | US $1.50337 | US $150.34 |
500+ | US $1.43801 | US $719.01 |
1000+ | US $1.30728 | US $1307.28 |
Do you want a lower wholesale price? Please send us an inquiry, and we will respond immediately.
Product Parameter
- ManufacturerMicrochip Technology
- Manufacturer's Part #LR8K4-G
- CategoriesIntegrated Circuits (ICs)
- Sub-CategoriesPMIC - Voltage Regulators - Linear
- Series-
- ECCNEAR99
- PSRR60dB (120Hz)
- MountSurface Mount
- Width6.1mm
- Height2.5146mm
- Length6.73mm
- Accuracy5 %
- Lead FreeLead Free
- PackagingTape & Reel (TR)
- Published2009
- Output TypeAdjustable
- Part StatusActive
- REACH StatusREACH Unaffected
- Mounting TypeSurface Mount
- Terminal FormGULL WING
- Number of Pins3
- Output Voltage440V

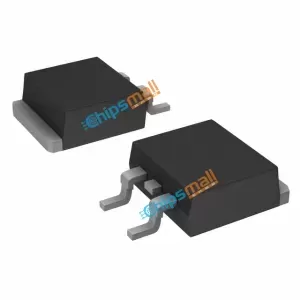

- Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
- Terminal Pitch2.286mm
- Contact PlatingTin
- Dropout Voltage450mV
- Base Part NumberLR8
- Factory Lead Time16 Weeks
- Min Current Limit30mA
- Min Input Voltage13.2V
- Number of Outputs1
- Power Dissipation2.5W
- Terminal PositionSINGLE
- Max Output Current10mA
- Max Output Voltage440V
- Max Supply Voltage450V
- Min Output Voltage1.2V
- Min Supply Voltage13.2V
- Number of Functions1
- Protection FeaturesOver Current, Over Temperature
- Radiation HardeningNo
- Output ConfigurationPositive
- Max Power Dissipation2.5W
- Operating Temperature-40°C~85°C
- Nominal Supply Current10μA
- Number of Terminations2
- Voltage - Output (Max)438V
- Output Voltage Accuracy5 %
- Max Junction Temperature (Tj)125°C
- Ambient Temperature Range High85°C
- Power Supply Rejection Ratio (PSRR)60dB
Environmental & Export Classifications
- HTSUS8542.39.0001
- ECCN CodeEAR99
- REACH SVHCNo SVHC
- RoHS StatusROHS3 Compliant
- JESD-30 CodeR-PSSO-G2
- JESD-609 Codee3
- Moisture Sensitivity Level (MSL)3 (168 Hours)
