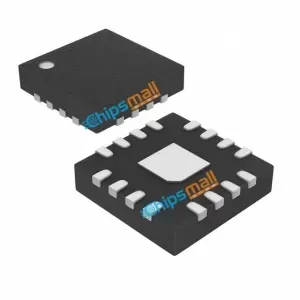

MAX97220AETE+T
- Manufacturer's Part No.:MAX97220AETE+T
- Manufacturer:
- Categories:
- Sub-Categories:
- Series:DirectDrive®
- Description:IC LINE DVR/HEADPHONE AMP 16TQFN
- Datasheet:
- Quantity:Buy NowAdd to Cart
- Payment:
- Delivery:
- In Stock: 2500
- Available: 140232
Reference Price(In US Dollars)
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1+ | US $1.26120 | US $1.26 |
| 10+ | US $0.84080 | US $8.41 |
| 30+ | US $0.63060 | US $18.92 |
| 100+ | US $0.50448 | US $50.45 |
| 500+ | US $0.46244 | US $231.22 |
| 1000+ | US $0.42040 | US $420.40 |
Do you want a lower wholesale price? Please send us an inquiry, and we will respond immediately.
- Description
- Alternatives
- Shopping Guide
The MAX97220_ is a differential input DirectDrive® line driver/headphone amplifier. This device is capable of driving line level loads with 3VRMS into 1kI with a 5V supply and 2VRMS into 600I loads from a 3.3V supply. A headphone load is capable of being driven with 125mW into 32I with a 5V supply.
The IC is offered with an internally fixed 6dB gain or an externally set gain through external resistors.
The external gain setting nodes can also be used to configure filters for set-top box applications.
The IC has exceptional THD+N over the full audio bandwidth.
Features
♦ Output Power 125mW into 32I with a 5V Supply
♦ 3VRMS Output Drive into 1kI with a 5V Supply
♦ 2VRMS Output Drive into 600I with a 3.3V Supply
♦ Fully Differential Inputs
♦ Fixed or Externally Adjustable Gain with No Clicks or Pops
♦ Wide 2.5V to 5.5V Operating Range
♦ DirectDrive Outputs Eliminate DC-Blocking Capacitors
♦ Flat THD+N, Better Than 90dB in the Audio Band
♦ 18-Bit SNR Performance, 112dB
♦ Footprint Compatible with the MAX9722Applications Simple Multimedia Interfaces Set-Top Boxes Blu-ray™ and DVD Players LCD Televisions Prosumer Audio Devices
