PESD24VS2UT,215

The PESD24VS2UT,215 is a bidirectional transient voltage suppressor (TVS) diode designed to protect sensitive electronic components from voltage spikes and electrostatic discharge (ESD). Manufactured by Nexperia, this component is particularly useful in applications where robust protection is required for data lines and power lines.

Key Features:

1. Bidirectional Protection: The PESD24VS2UT,215 provides protection in both directions, making it suitable for AC and DC applications. This feature is essential for protecting against ESD events that can occur in either polarity.

2. Low Clamping Voltage: The device is designed to have a low clamping voltage, which means it can effectively limit the voltage that reaches the protected components during a transient event. This characteristic helps to ensure that sensitive devices remain operational even during voltage spikes.

3. Fast Response Time: The PESD24VS2UT,215 has a very fast response time, allowing it to react quickly to transient events. This rapid response is crucial for protecting high-speed data lines, such as USB, HDMI, and Ethernet interfaces.

4. High ESD Protection Level: The component is rated to withstand multiple ESD strikes, making it suitable for environments where ESD events are common. It typically meets or exceeds the IEC 61000-4-2 standard for ESD protection.

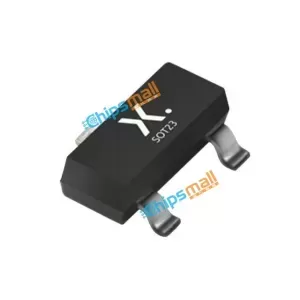

5. Compact Package: The PESD24VS2UT,215 is housed in a small SOT23 package, which allows for easy integration into compact electronic designs. Its small footprint is ideal for space-constrained applications.

6. Operating Voltage: The device is designed to operate within a specified voltage range, ensuring that it can protect against transients without interfering with normal operation.

7. Applications: This TVS diode is commonly used in consumer electronics, automotive applications, industrial equipment, and telecommunications. It is particularly effective in protecting interfaces such as USB, HDMI, and other data lines from ESD and surge events.

Electrical Characteristics:

• Reverse Stand-off Voltage (V_RWM): Typically around 24V, indicating the maximum voltage the device can withstand without conducting.
• Clamping Voltage (V_C): The maximum voltage the device will allow during a transient event, which is significantly lower than the breakdown voltage.
• Peak Pulse Power (P_PP): The maximum power the device can dissipate during a transient event, ensuring it can handle high-energy spikes.

Conclusion:

The PESD24VS2UT,215 from Nexperia is a highly effective solution for protecting sensitive electronic components from ESD and voltage transients. Its bidirectional capability, low clamping voltage, and compact design make it an excellent choice for a wide range of applications, ensuring reliability and longevity in electronic devices.
