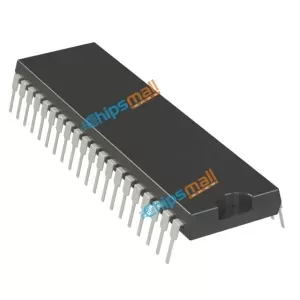

PIC18F4550-I/P

The PIC18F4550-I/P is a microcontroller from Microchip Technology, part of the PIC18 family, which is known for its high performance and versatility in embedded applications. This microcontroller is particularly popular for its USB capabilities, making it suitable for a wide range of applications, including consumer electronics, industrial automation, and communication devices.

Key Features:

1. Architecture: The PIC18F4550 features a 16-bit instruction set architecture, which allows for efficient processing and control. It operates on a Harvard architecture, meaning it has separate memory spaces for program code and data, enhancing performance.

2. Memory:

   • Flash Memory: It has 32 KB of Flash memory for program storage, which is reprogrammable and allows for easy updates and modifications.
   • RAM: The microcontroller includes 2 KB of SRAM for data storage, providing sufficient space for variable storage during program execution.
   • EEPROM: It also features 256 bytes of EEPROM, which is useful for storing non-volatile data that must be retained even when the power is turned off.

3. Clock Speed: The PIC18F4550 can operate at a maximum clock speed of 48 MHz, which allows for fast processing and responsiveness in applications.

4. I/O Ports: The microcontroller has 36 I/O pins, which can be configured for various functions, including digital input/output, analog input, and communication interfaces. This flexibility makes it suitable for interfacing with a wide range of peripherals.

5. Analog Features: It includes a 10-bit Analog-to-Digital Converter (ADC) with up to 13 channels, enabling it to read analog signals from sensors and other devices. This feature is essential for applications that require data from the physical world.

6. Communication Interfaces: The PIC18F4550 supports multiple communication protocols, including:

   • USB 2.0: Full-speed USB interface, allowing for easy connection to USB devices and peripherals.
   • UART: Universal Asynchronous Receiver/Transmitter for serial communication.
   • SPI: Serial Peripheral Interface for high-speed data transfer with other devices.
   • I2C: Inter-Integrated Circuit for connecting multiple devices with minimal wiring.

7. Timers and PWM: It includes several timers and a Pulse Width Modulation (PWM) module, which are useful for timing applications and controlling motors or other devices that require precise timing.

8. Interrupts: The microcontroller supports multiple interrupt sources, allowing it to respond quickly to external events, which is crucial for real-time applications.

9. Operating Voltage: The PIC18F4550 operates within a voltage range of 2.0V to 5.5V, making it suitable for battery-powered applications as well as standard power supply systems.

10. Package Type: The "I/P" designation indicates that this microcontroller is available in a dual in-line package (DIP), which is easy to handle and solder, making it ideal for prototyping and educational purposes.

Applications:

The PIC18F4550 is widely used in various applications, including:

• USB-enabled devices such as keyboards, mice, and data loggers.
• Industrial control systems for automation and monitoring.
• Consumer electronics like remote controls and smart appliances.
• Robotics and motor control systems.
• Data acquisition systems that require analog signal processing.

Conclusion:

The PIC18F4550-I/P is a robust and versatile microcontroller that combines a rich set of features with ease of use, making it an excellent choice for both beginners and experienced developers in the field of embedded systems. Its USB capabilities, combined with ample memory and I/O options, allow for a wide range of innovative applications.
