SKY13351-378LF

The SKY13351-378LF is a high-performance RF switch designed by Skyworks Solutions, primarily used in wireless communication applications. This device is particularly well-suited for mobile devices, including smartphones and tablets, as well as other RF applications that require efficient signal routing.

Key Features:

1. Type and Configuration:

   • The SKY13351-378LF is a single-pole, double-throw (SPDT) switch. This configuration allows it to route a single input signal to one of two output paths, making it versatile for various RF applications.

2. Frequency Range:

   • The switch operates effectively across a wide frequency range, typically from 0.1 GHz to 6 GHz. This broad range makes it suitable for various communication standards, including GSM, WCDMA, LTE, and Wi-Fi.

3. Low Insertion Loss:

   • One of the standout features of the SKY13351-378LF is its low insertion loss, which is crucial for maintaining signal integrity. This characteristic ensures minimal signal degradation when the switch is in operation.

4. High Isolation:

   • The device offers high isolation between the ports, which helps prevent signal leakage and interference between the different paths. This is particularly important in multi-band applications where multiple signals may be present.

5. Control Voltage:

   • The switch is controlled by a low voltage, typically around 1.8V to 3.3V, allowing for easy integration with digital control circuits. This feature enhances its compatibility with various microcontrollers and processors.

6. Compact Package:

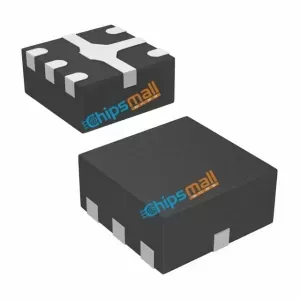

   • The SKY13351-378LF is housed in a compact, surface-mount package (usually a 6-pin package), which facilitates easy integration into space-constrained designs. The small footprint is ideal for modern electronic devices that prioritize miniaturization.

7. Environmental Considerations:

   • The device is designed to operate over a wide temperature range, making it suitable for various environmental conditions. Additionally, it is manufactured with lead-free materials, aligning with modern environmental standards.

8. Applications:

   • The SKY13351-378LF is commonly used in applications such as:
     • Mobile handsets
     • Tablets
     • Wireless infrastructure
     • IoT devices
     • RF front-end modules

Performance Specifications:

• Insertion Loss: Typically low, around 0.3 dB at 2.5 GHz.
• Isolation: High, often exceeding 30 dB at the same frequency.
• Power Handling: Capable of handling significant RF power levels, making it robust for various applications.

Conclusion:

The SKY13351-378LF from Skyworks Solutions is a versatile and efficient RF switch that meets the demands of modern wireless communication systems. Its combination of low insertion loss, high isolation, and compact design makes it an excellent choice for engineers looking to optimize RF signal routing in their designs.
