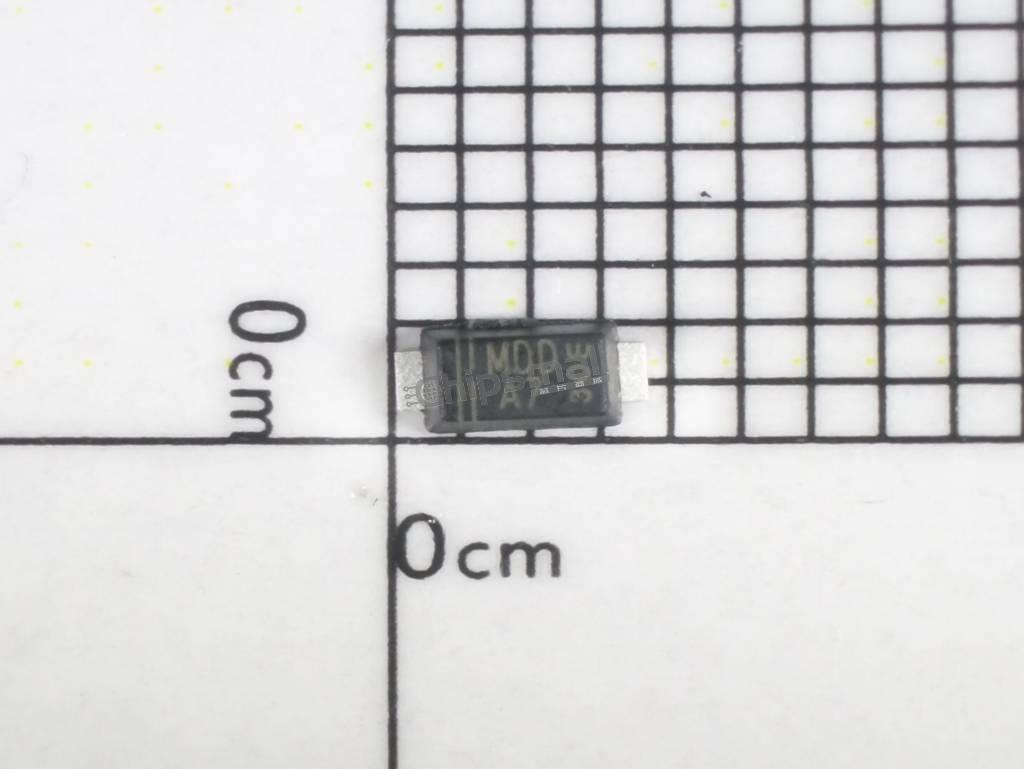

SM4007PL

The SM4007PL is a high-performance Schottky barrier rectifier diode manufactured by Microdiode Electronics (MDD). This component is designed for applications requiring efficient rectification and fast switching capabilities, making it suitable for power supply circuits, DC-DC converters, and various electronic devices.

Key Features:

1. Voltage Rating: The SM4007PL typically has a reverse voltage rating of 40V, allowing it to handle moderate voltage applications effectively.

2. Current Rating: It can support a forward current of up to 1A, making it suitable for low to medium power applications.

3. Low Forward Voltage Drop: One of the standout features of the SM4007PL is its low forward voltage drop, usually around 0.45V at 1A. This characteristic helps in reducing power loss and improving overall efficiency in circuits.

4. Fast Switching Speed: The Schottky design allows for rapid switching, which is essential in high-frequency applications. This feature minimizes switching losses and enhances performance in applications like switch-mode power supplies.

5. Package Type: The SM4007PL is typically housed in a compact DO-214AA (SMA) package, which is surface-mountable. This design not only saves space on printed circuit boards (PCBs) but also aids in thermal management.

6. Temperature Range: The diode operates effectively over a wide temperature range, often from -55°C to +125°C, making it suitable for various environmental conditions.

7. Low Leakage Current: The SM4007PL exhibits low reverse leakage current, which is crucial for maintaining efficiency in power applications, especially in battery-operated devices.

Applications:

• Power Supply Circuits: Ideal for use in AC-DC converters and power supply modules.
• DC-DC Converters: Commonly used in buck and boost converters due to its fast recovery time.
• Solar Inverters: Suitable for applications in renewable energy systems where efficiency is paramount.
• Battery Chargers: Effective in charging circuits where low forward voltage drop is essential for maximizing charging efficiency.

Conclusion:

The SM4007PL from Microdiode Electronics is a versatile and efficient Schottky diode that meets the demands of modern electronic applications. Its combination of low forward voltage drop, fast switching speed, and robust performance across a range of temperatures makes it a reliable choice for engineers and designers looking to optimize their circuit designs.
