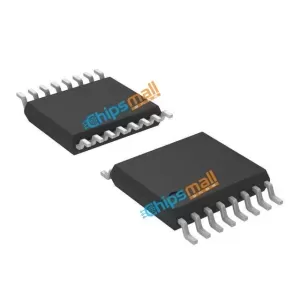

SN74LVC138APWR

  • In Stock: 30000
  • Available: 644086

Reference Price(In US Dollars)

QtyUnit PriceExt.Price
1+US $0.29664US $0.30
10+US $0.19776US $1.98
30+US $0.14832US $4.45
100+US $0.11866US $11.87
500+US $0.10877US $54.39
1000+US $0.09888US $98.88

Do you want a lower wholesale price? Please send us an inquiry, and we will respond immediately.

Quick RFQ

Product Parameter

  • Manufacturer
    Texas
  • Manufacturer's Part No.
    SN74LVC138APWR
  • Categories
    Integrated Circuits (ICs)
  • Sub-Categories
    Logic - Signal Switches, Multiplexers, Decoders
  • Series
    74LVC
  • Peak Reflow Temperature (Cel)
    260
  • Number of Terminations
    16
  • Radiation Hardening
    No
  • Number of Functions
    1
  • Terminal Position
    DUAL
  • Supply Voltage
    1.8V
  • Terminal Form
    GULL WING
  • Subcategory
    Decoder/Drivers
  • Technology
    CMOS
  • Supply Type
    Single
  • Number of Circuits
    1
  • Terminal Finish
    Matte Tin (Sn)
  • Packing Method
    TR
  • Length
    5mm
  • Width
    4.4mm
  • Factory Lead Time
    6 Weeks
  • Pbfree Code
    yes
  • Operating Temperature
    -40°C~85°C
  • Package / Case
    16-TSSOP (0.173, 4.40mm Width)
  • Number of Pins
    16
  • Mounting Type
    Surface Mount
  • Packaging
    Cut Tape (CT)
  • Lead Free
    Lead Free
  • Height
    1.2mm
  • Mount
    Surface Mount
  • Type
    Decoder/Demultiplexer
  • Part Status
    Active
  • Quiescent Current
    10μA
  • Bandwidth
    100MHz
  • Logic Function
    Decoder, Demultiplexer
  • Input Conditioning
    STANDARD
  • Power Rating
    LVC/LCX/Z
  • Min Breakdown Voltage
    0.024 A
  • Prop. Delay@Nom-Sup
    6.7 ns
  • Voltage Supply Source
    Single Supply
  • Current - Output High, Low
    24mA 24mA
  • Lifecycle Status
    ACTIVE (Last Updated: 2 days ago)
  • Weight
    61.887009mg
  • Polarity
    Inverting
  • Base Part Number
    74LVC138
  • Max Power Dissipation
    200mW
  • Number of Outputs
    8
  • Voltage - Supply
    1.65V~3.6V
  • Pin Count
    16
  • Circuit
    1 x 3:8
  • Number of Bits
    8
  • Total Dose
    1mm
  • Number of Inputs
    3
  • Load Capacitance
    50pF
  • Propagation Delay
    22 ns
  • Turn On Delay Time
    22 ns

Environmental & Export Classifications

  • ECCN Code
    EAR99
  • JESD-609 Code
    e3
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • RoHS Status
    ROHS3 Compliant
  • REACH SVHC
    No SVHC
