SS543AT

The SS543AT is a high-performance magnetic sensor manufactured by Honeywell, designed for various applications in industrial and consumer electronics. This sensor is part of Honeywell's extensive range of sensing solutions, known for their reliability and precision.

Key Features:

1. Type and Functionality:

   • The SS543AT is a solid-state magnetic sensor that operates based on the Hall effect. It detects the presence and strength of magnetic fields, making it ideal for applications such as position sensing, speed detection, and proximity sensing.

2. Design and Form Factor:

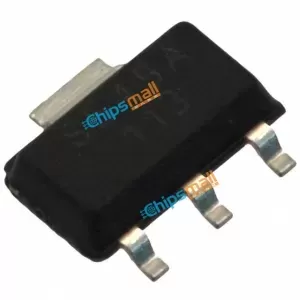

   • The sensor typically comes in a compact, surface-mount package, which allows for easy integration into various electronic circuits. Its small size makes it suitable for space-constrained applications.

3. Electrical Characteristics:

   • The SS543AT operates on a low supply voltage, typically around 4.5V to 10.5V, which contributes to its energy efficiency. It has a low power consumption profile, making it suitable for battery-operated devices.

4. Output Type:

   • The sensor provides a digital output, which can be easily interfaced with microcontrollers and other digital systems. This output is typically a binary signal that indicates the presence or absence of a magnetic field.

5. Sensitivity and Range:

   • The SS543AT is designed to detect a wide range of magnetic field strengths, with a sensitivity that can be adjusted based on the application requirements. This makes it versatile for different sensing tasks.

6. Temperature Range:

   • The sensor is built to operate effectively across a broad temperature range, ensuring reliable performance in various environmental conditions. This feature is particularly important for industrial applications where temperature fluctuations are common.

7. Applications:

   • The SS543AT is widely used in applications such as:
     • Automotive systems (e.g., position sensing for doors, hoods, and trunks)
     • Consumer electronics (e.g., smartphones and tablets for screen orientation)
     • Industrial automation (e.g., motor control and position feedback)
     • Security systems (e.g., door/window sensors)

8. Durability and Reliability:

   • Honeywell's sensors are known for their robust construction, ensuring long-term reliability even in harsh environments. The SS543AT is designed to withstand mechanical stress and environmental factors, making it suitable for demanding applications.

Conclusion:

The SS543AT from Honeywell is a versatile and reliable magnetic sensor that offers a combination of compact design, low power consumption, and high sensitivity. Its wide range of applications across various industries makes it a valuable component for engineers and designers looking to implement effective magnetic sensing solutions.
