STM32F107RBT6

The STM32F107RBT6 is a microcontroller from STMicroelectronics, part of the STM32 family, which is based on the ARM Cortex-M3 core. This microcontroller is designed for a wide range of applications, including industrial control, consumer electronics, and medical devices, thanks to its robust performance and rich set of features.

Key Features:

1. Core Architecture:

   • ARM Cortex-M3: The STM32F107RBT6 is built on the ARM Cortex-M3 architecture, which provides a 32-bit RISC (Reduced Instruction Set Computing) core. This architecture is known for its high performance and low power consumption, making it suitable for embedded applications.

2. Performance:

   • Clock Speed: The microcontroller operates at a maximum clock frequency of 72 MHz, allowing for efficient processing of tasks and real-time applications.
   • Flash Memory: It features 128 KB of Flash memory for program storage, enabling the development of complex applications with ample space for code.
   • SRAM: The device includes 20 KB of SRAM, providing sufficient memory for variable storage and stack operations.

3. Peripheral Interfaces:

   • GPIO: The STM32F107RBT6 has up to 51 general-purpose input/output (GPIO) pins, which can be configured for various functions, including digital input/output, analog input, and alternate functions.
   • Communication Interfaces: It supports multiple communication protocols, including:
     • USART: Up to 3 USART interfaces for serial communication.
     • SPI: 3 SPI interfaces for high-speed data transfer.
     • I2C: 2 I2C interfaces for connecting to sensors and other peripherals.
     • USB: Full-speed USB 2.0 interface for connectivity with USB devices.
   • CAN: A Controller Area Network (CAN) interface is available for automotive and industrial applications.

4. Analog Features:

   • ADC: The microcontroller includes a 12-bit Analog-to-Digital Converter (ADC) with up to 16 channels, allowing for precise analog signal processing.
   • DAC: A 12-bit Digital-to-Analog Converter (DAC) is also available for generating analog signals from digital data.

5. Timers and PWM:

   • The STM32F107RBT6 is equipped with several timers, including general-purpose timers and advanced-control timers, which can be used for timing operations, event counting, and generating Pulse Width Modulation (PWM) signals for motor control and other applications.

6. Power Management:

   • The microcontroller operates in various power modes, including sleep and stop modes, to minimize power consumption during idle periods. This feature is particularly beneficial for battery-powered applications.

7. Development Support:

   • The STM32F107RBT6 is supported by a wide range of development tools, including the STM32CubeMX software for configuration and initialization, as well as various Integrated Development Environments (IDEs) like Keil MDK, IAR Embedded Workbench, and STM32CubeIDE.

8. Package:

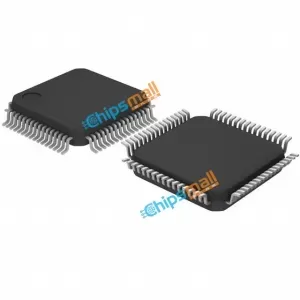

   • The microcontroller is available in a LQFP (Low-Profile Quad Flat Package) with 64 pins, making it suitable for compact designs while providing easy access to all the necessary pins for interfacing.

Applications:

The STM32F107RBT6 is ideal for applications such as:

• Industrial automation and control systems
• Medical devices and equipment
• Consumer electronics
• Automotive applications
• Communication systems

In summary, the STM32F107RBT6 microcontroller from STMicroelectronics is a versatile and powerful device that combines high performance, a rich set of peripherals, and low power consumption, making it suitable for a wide range of embedded applications.
