STM32L451RET6TR

The STM32L451RET6TR is a microcontroller from STMicroelectronics, part of the STM32 family, specifically designed for low-power applications. It is based on the ARM Cortex-M4 core, which operates at a maximum frequency of 80 MHz. This microcontroller is particularly well-suited for battery-powered devices and applications requiring energy efficiency.

Key Features:

1. Core Architecture:

   • ARM Cortex-M4: The STM32L451RET6TR features a 32-bit ARM Cortex-M4 core with a floating-point unit (FPU), enabling efficient processing of complex calculations and signal processing tasks.

2. Memory:

   • Flash Memory: It includes 256 KB of Flash memory for program storage, allowing for the development of complex applications.
   • SRAM: The microcontroller is equipped with 64 KB of SRAM, providing ample space for variable storage and stack operations.

3. Power Consumption:

   • The STM32L451RET6TR is designed for ultra-low power consumption, with various low-power modes that allow it to operate in sleep and standby modes, making it ideal for energy-sensitive applications.

4. Operating Voltage:

   • It operates within a voltage range of 1.8V to 3.6V, which is suitable for battery-operated devices.

5. Peripherals:

   • Analog Features: The microcontroller includes a 12-bit ADC (Analog-to-Digital Converter) with up to 16 channels, a DAC (Digital-to-Analog Converter), and several comparators.
   • Timers: It features multiple timers, including general-purpose timers and advanced-control timers, which are useful for PWM (Pulse Width Modulation) applications.
   • Communication Interfaces: The STM32L451RET6TR supports various communication protocols, including I2C, SPI, USART, and USB, facilitating easy integration with other devices and sensors.

6. Development Support:

   • The microcontroller is supported by a wide range of development tools, including the STM32CubeMX software for configuration and initialization, as well as various IDEs (Integrated Development Environments) like Keil, IAR, and STM32CubeIDE.

7. Package:

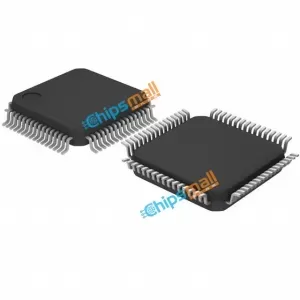

   • The STM32L451RET6TR is available in a LQFP (Low-Profile Quad Flat Package) with 64 pins, making it suitable for compact designs.

8. Temperature Range:

   • It operates within a temperature range of -40°C to +85°C, making it suitable for industrial and outdoor applications.

Applications:

The STM32L451RET6TR is ideal for a variety of applications, including:

• Wearable devices
• Smart home products
• Medical devices
• Environmental monitoring systems
• Industrial automation

In summary, the STM32L451RET6TR is a versatile, low-power microcontroller that combines performance with energy efficiency, making it an excellent choice for a wide range of embedded applications. Its rich set of features and extensive development support further enhance its appeal to engineers and developers.
