Understanding Crossover Ethernet Cables in 2025

Networking is the backbone of our connected world. From small home offices to large industrial setups, devices need to communicate smoothly. Most of the time, this occurs through standard Ethernet cables and devices, such as routers, hubs, or switches. But if you need to connect two similar devices directly, you’ll need a special type of cable known as a crossover Ethernet cable.

Although they aren’t commonly used today due to modern auto-sensing technologies, crossover cables still play a crucial role in certain scenarios. Let’s take a deeper look.

What Is a Crossover Ethernet Cable?

A crossover Ethernet cable is a type of network cable used to connect two devices of the same kind directly. Unlike a standard Ethernet cable (commonly called a straight-through cable), the internal wiring of a crossover cable is arranged so that the transmit signal pairs on one end are swapped with the receive signal pairs on the other.

This wiring configuration enables direct communication between similar devices. In standard setups, devices such as two computers, two switches, or two routers cannot exchange data using a straight-through cable because their transmit and receive pins align in the same way. A crossover cable resolves this by ensuring that the transmit pins of one device connect directly to the receive pins of the other.

By altering only the pin configuration inside the cable, crossover Ethernet cables eliminate the need for additional hardware, such as hubs or switches, when linking identical devices.

Key Distinction

• Straight-through Ethernet cable – designed for connecting different types of devices (e.g., computer to router, switch to router).

• Crossover Ethernet cable – designed for connecting similar devices (e.g., computer to computer, switch to switch, router to router).

How Does a Crossover Cable Work?

The function of a crossover cable comes down to its internal wiring pattern. Ethernet cables are built from twisted pairs of wires, and each pair is assigned a role—some wires carry outgoing signals (transmit), while others carry incoming signals (receive).

• In a straight-through cable, the transmit pins on one end connect directly to the same transmit pins on the other, and the same applies to the receive pins. This setup works when connecting different types of devices (like a computer to a router), because the networking equipment is designed to internally redirect signals where they need to go.

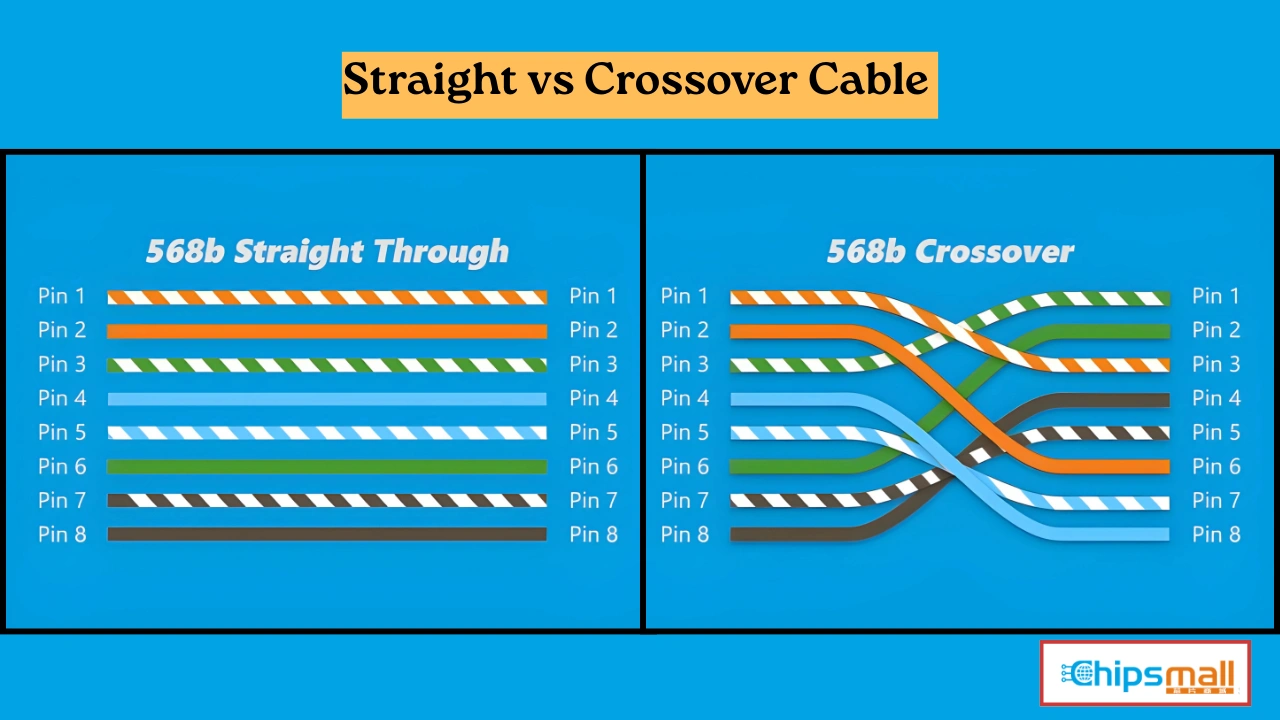

• In a crossover cable, the wiring is intentionally crossed so that the transmit pins on one end connect to the receive pins on the other. This change ensures that two similar devices can properly send and receive signals directly, without interference or data collisions.

This “crossover” is achieved by using two different Ethernet wiring standards:

• T568A on one end of the cable

• T568B on the other end

By wiring the ends in this way, the transmit and receive lines are swapped, creating a direct communication channel between two similar devices (such as computer-to-computer or switch-to-switch) without requiring a router or switch in between.

Types of Crossover Ethernet Cables

Crossover Ethernet cables come in different categories. Each category is designed to handle certain speeds, bandwidths, and environments. Choosing the right type depends on how fast your network needs to be and where the cable will be used.

1. Cat5e Crossover Cable: Cat5e (Category 5e) is one of the most common types of Ethernet cable. A Cat5e crossover cable can handle speeds up to 1 Gbps, which is fast enough for most everyday uses. It supports a bandwidth range of 100–350 MHz.

• This type is often used in home networks or small office setups where basic file sharing, internet access, and light networking tasks are needed.

• It’s affordable and widely available, making it a practical choice for simple peer-to-peer connections.

2. Cat6 Crossover Cable: Cat6 cables are an improvement over Cat5e. A Cat6 crossover cable can reach speeds of up to 10 Gbps, but usually only over short distances (up to 55 meters). It supports a bandwidth of 250–550 MHz, which allows for more data to pass through at once.

• This type is suitable for modern office setups, faster file transfers, and applications that require higher performance.

• Compared to Cat5e, Cat6 offers better insulation and reduced signal interference, leading to more reliable connections.

3. Cat6 Shielded Crossover Cable: In some environments, electronic devices or heavy machinery create a lot of electromagnetic interference (EMI). This interference can disrupt network signals. A shielded Cat6 crossover cable is designed to prevent that problem.

• The extra shielding keeps the connection stable even in “noisy” environments.

• It is often used in data centers, factories, and industrial plants where reliable communication is critical.

How Cable Length Affects Speed

The length of the Ethernet cable plays an important role in network performance. Every Ethernet cable has a maximum distance it can carry data effectively before the signal begins to weaken.

The standard maximum length for most Ethernet cables is 100 meters (328 feet). Beyond this distance, the signal may start to degrade, which can lead to slower speeds, unstable connections, or even complete data loss.

To maintain the best performance, it’s important to follow a few best practices:

• Always use high-quality cables that meet the proper category standards.

• Avoid sharp bends or tight loops, as these can damage the internal wires and weaken the signal.

• In areas with a lot of electrical noise or interference, such as factories or server rooms, consider using shielded cables to protect the data flow.

Crossover vs. Straight-Through Ethernet Cables

When to Use a Straight-Through Cable

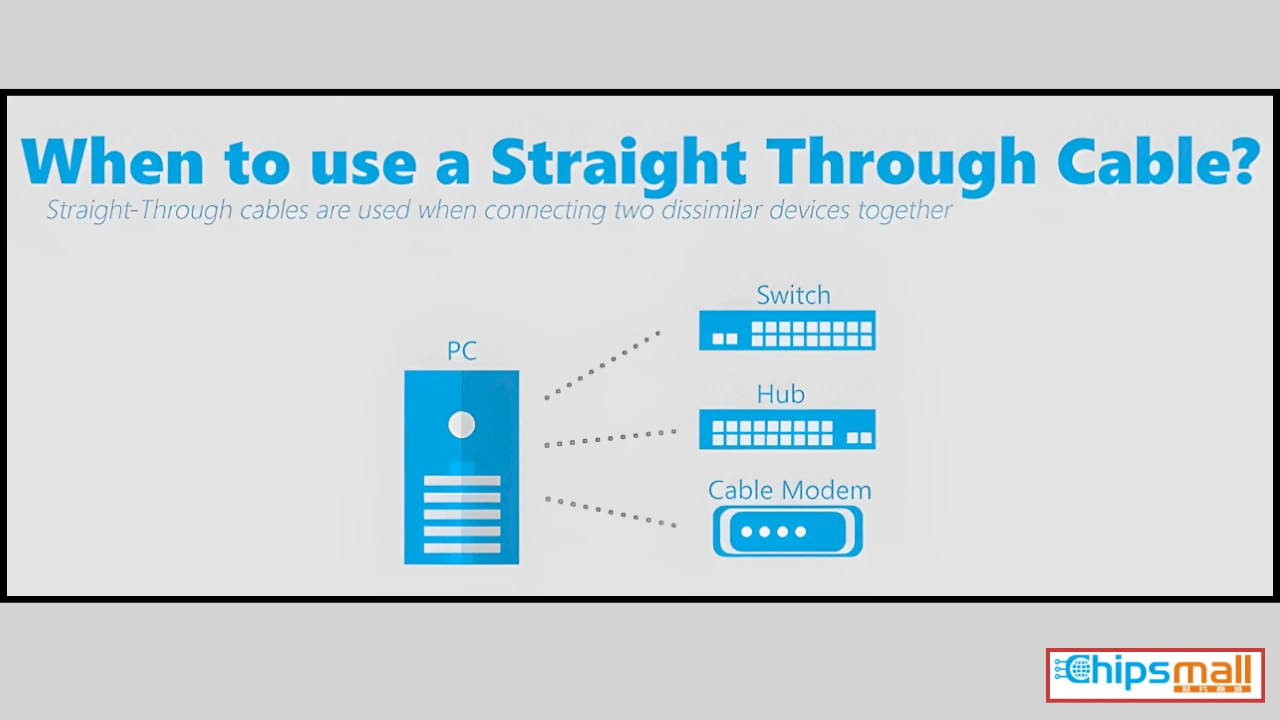

A straight-through Ethernet cable is used when connecting different types of devices. For example, you would use it to connect a computer to a router, a PC to a switch, or a modem to a network hub. This type of cable keeps the transmit and receive lines the same on both ends, which works perfectly for dissimilar devices where the network hardware manages the signal direction internally. Most modern home and office networks primarily use straight-through cables because they are simple and compatible with auto-sensing devices.

When Do You Need a Crossover Cable?

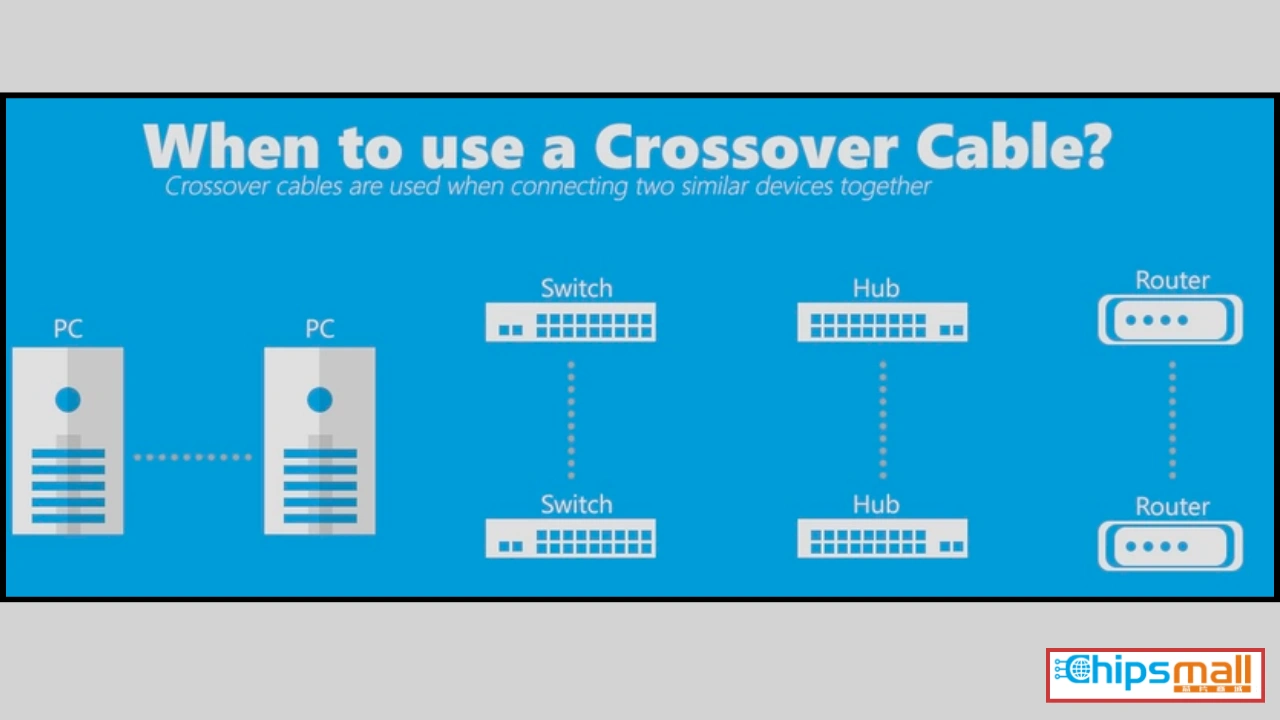

A crossover Ethernet cable is needed when connecting similar devices directly without a hub, router, or switch. Examples include PC-to-PC, switch-to-switch, or router-to-router connections, especially in older or legacy devices that don’t support Auto-MDIX. The internal wiring swaps the transmit and receive lines, allowing both devices to communicate properly.

Let's deeply understand it:

1. Connecting Two Computers Directly: If you want to share files or set up a peer-to-peer connection between two computers without using a router or switch, a crossover cable allows them to connect directly.

2. Connecting Legacy Equipment: Older devices, such as routers, hubs, or switches made before Auto-MDIX was common, do not adjust signal paths automatically. In these cases, a crossover cable is required to link two similar devices.

3. Industrial and Embedded Systems: Many industrial devices—such as PLCs (Programmable Logic Controllers), SCADA systems, or certain embedded boards—do not have auto-sensing features. These devices often need a physical crossover cable to communicate properly.

4. Lab and Testing Environments: Network engineers, IT students, and technicians use crossover cables in laboratories to test direct device-to-device communication or to troubleshoot hardware without involving extra networking equipment.

5. Switch-to-Switch or Router-to-Router Connections: If two switches or two routers do not support Auto-MDIX, a crossover cable is necessary for direct connections between them.

​

Why Crossover Cables Still Matter in 2025

Even though technology has advanced, crossover cables continue to be relevant:

• Reliability in controlled setups: In testing labs or industrial systems, you want guaranteed signal routing. A crossover cable gives you that assurance.

• Legacy hardware support: Many businesses and factories still run older systems that don’t support Auto-MDIX.

• Diagnostics: When troubleshooting, a crossover cable ensures you’re not relying on software-based auto-sensing.

How to Make a Crossover Ethernet Cable (DIY Guide)

If you enjoy DIY projects, you can make your own crossover cable. Here’s how:

Tools You’ll Need:

• RJ45 connectors

• Ethernet cable (Cat5e or Cat6)

• Crimping tool

• Wire stripper

• Cable tester

Steps:

1. Cut the cable to the desired length: Start by measuring how long you want your cable to be. Use scissors or a cable cutter to cut it cleanly.

2. Strip the insulation: At both ends of the cable, remove about 1–2 inches of the outer plastic insulation. This will expose the smaller twisted pairs of wires inside. Be careful not to cut or damage the wires while stripping.

3. Arrange the wires in the correct order: Ethernet cables follow specific wiring standards. For a crossover cable, you’ll use two different ones:

• On End 1, arrange the wires according to the T568A standard.

• On End 2, arrange them according to the T568B standard.

This difference in wiring is what “crosses over” the transmit and receive lines.

4. Insert the wires into RJ45 connectors: Once the wires are lined up correctly, carefully slide them into the RJ45 connector, making sure each wire goes into the right slot. Push them in until they reach the end.

5. Crimp the connectors: Use a crimping tool to press down on the RJ45 connector. This locks the wires into place and secures the connector to the cable. Repeat this for both ends.

6. Test the cable: Before using it, check your cable with a network cable tester. This will confirm that all wires are connected properly and the crossover wiring is correct.

Common Problems with Crossover Cables

Sometimes a crossover cable may not work as expected. Here’s how to troubleshoot:

• No link lights: Check for damaged connectors or incorrect wiring.

• No internet or data flow: Configure manual IP addresses on both devices (since there’s no router assigning IPs).

• Legacy hardware issues: Double-check compatibility; some very old devices may need specific settings.

Conclusion

Crossover Ethernet cables are not used as often today, but they are still very useful in certain situations. If you are working with older devices, industrial equipment, or testing setups, a crossover cable can make direct communication possible.

Even though most modern devices now use auto-sensing technology, having a crossover cable as a backup is always a smart idea. You may not need it every day, but when you do, it can save you time and solve problems quickly.

So, if you’re building networks, running tests, or managing legacy systems, keep at least one crossover cable in your toolkit.

FAQs

Q1: Can crossover Ethernet cables support gigabit speeds?
Ans: Yes. A properly made crossover cable in Cat5e, Cat6, or higher category can support gigabit speeds (up to 1 Gbps or more). The speed depends on the cable category and build quality, not just the crossover wiring.

Q2: Are crossover cables compatible with fiber optic connections?
Ans: No. Crossover cables are specific to copper-based Ethernet connections. Fiber optic networks use different types of cables and connectors, so crossover cables are not applicable in those setups.

Q3: Do wireless networks make crossover cables unnecessary?
Ans: Not completely. While Wi-Fi offers easy device-to-device communication, crossover cables still provide faster, more stable, and more secure direct connections, especially useful in labs or industrial environments.

Q4: How can I identify a crossover cable without a tester?
Ans: The easiest way is to look at the colored wire sequence inside the connectors at both ends. If both ends follow the same pattern, it’s a straight-through cable. If one end uses T568A and the other uses T568B, it’s a crossover cable. Some cables also have “Crossover” printed on them.

Q5: Can crossover cables damage modern devices if used by mistake?
Ans: No. Modern devices with Auto-MDIX will automatically adjust and work with either crossover or straight-through cables. Even if Auto-MDIX isn’t supported, using a crossover cable incorrectly simply results in no connection; it won’t damage the device
