Diagram for Ignition Switch – Complete Explanation and Wiring Guide

23 October 2025
icon211

Have you ever wondered what happens when you turn the car key or press the start button? That single action triggers a series of electrical connections that power up your vehicle. The component responsible for this process is the ignition switch. It directs power to key parts of the car, such as the starter motor and ignition system. To better understand the diagram for the ignition switch, let’s first explore what an ignition switch actually is.

diagram for ignition switch

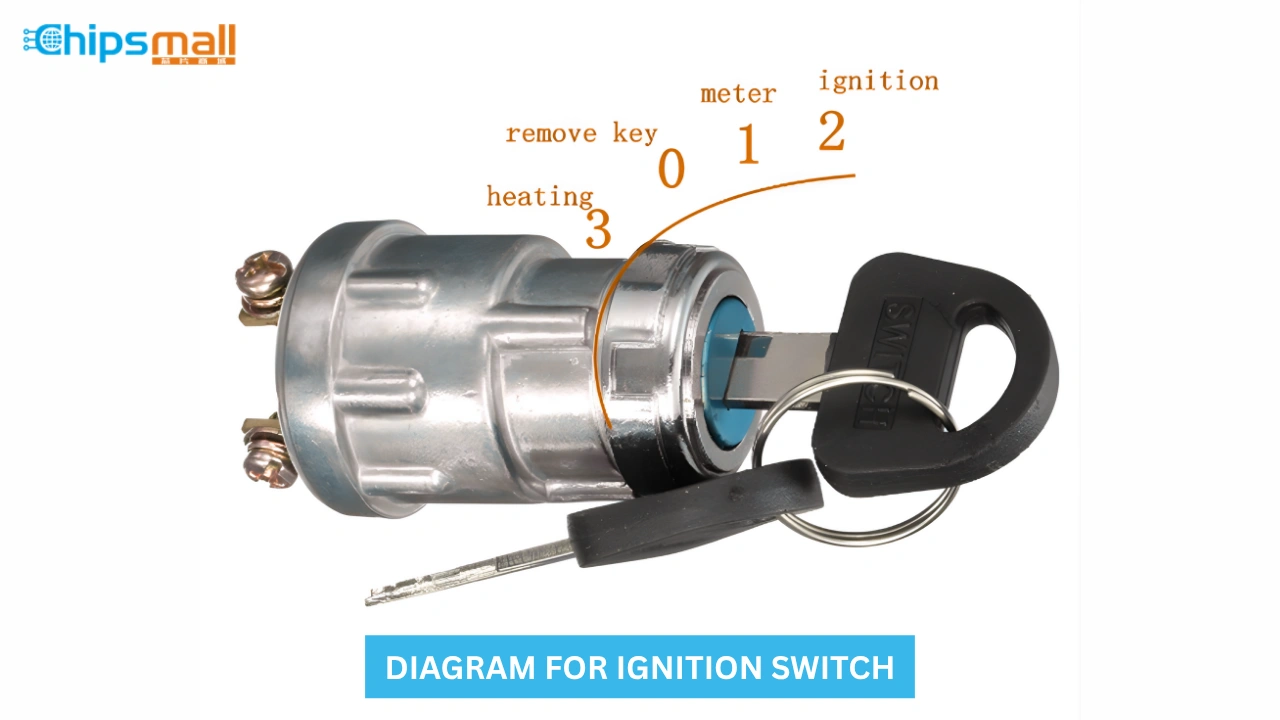

What Is an Ignition Switch?

An ignition switch is a key (or button) operated switch that controls a vehicle’s main electrical systems. It sends power to the ignition system, starter motor, and accessories like the radio or dashboard lights.

When you turn the key or press the start button, the ignition switch allows current to flow from the battery to the starter solenoid and ignition coil, starting the engine.

Basic Functions of an Ignition Switch

An ignition switch normally has four main positions, and each one has a different job:

  1. OFF / LOCK: In this position, the engine and all electrical parts are turned off. The steering wheel may also be locked, which helps prevent theft when the car is parked.

  2. ACC (Accessory): This position lets you use certain features like the radio, power windows, or interior lights without starting the engine. It’s useful when you want to listen to music or charge your phone without running the car.

  3. ON (Run): When the key is turned to “ON,” all the vehicle’s electrical systems are active. The dashboard lights come on, and power is sent to parts like the ignition system and fuel pump. The engine is ready to start in this position.

  4. START: This is the position you use to start the engine. Power goes from the ignition switch to the starter motor, which cranks the engine. Once the engine starts running, you release the key, and it returns to the “ON” position automatically.

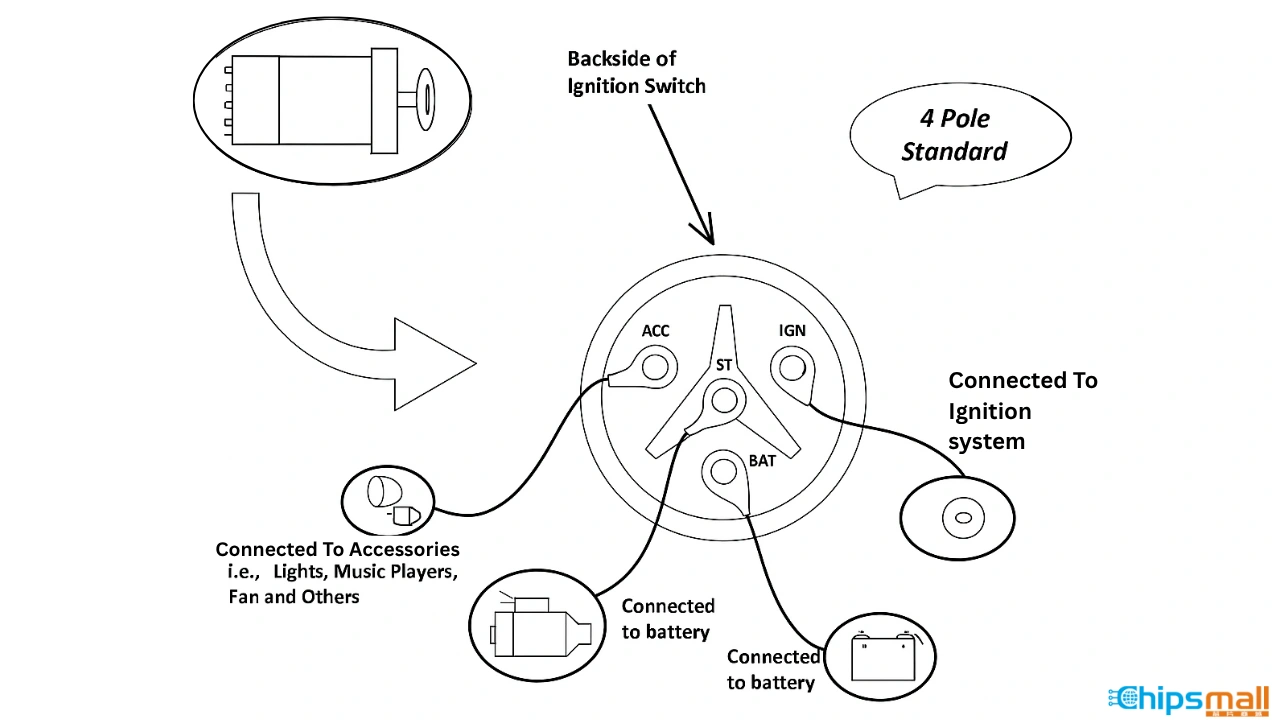

Diagram for Ignition Switch (Basic Layout)

  • The battery (BAT) terminal connects to the positive terminal of the car battery.

  • The ACC terminal connects to accessories like the radio.

  • The IGN terminal powers the engine and ignition system.

  • The ST terminal connects to the starter solenoid.

When you turn the key:

  • In ACC, only accessories receive power.

  • In ON (IGN), everything is powered.

  • In a START, the starter motor gets power to crank the engine.

ignition switch diagram

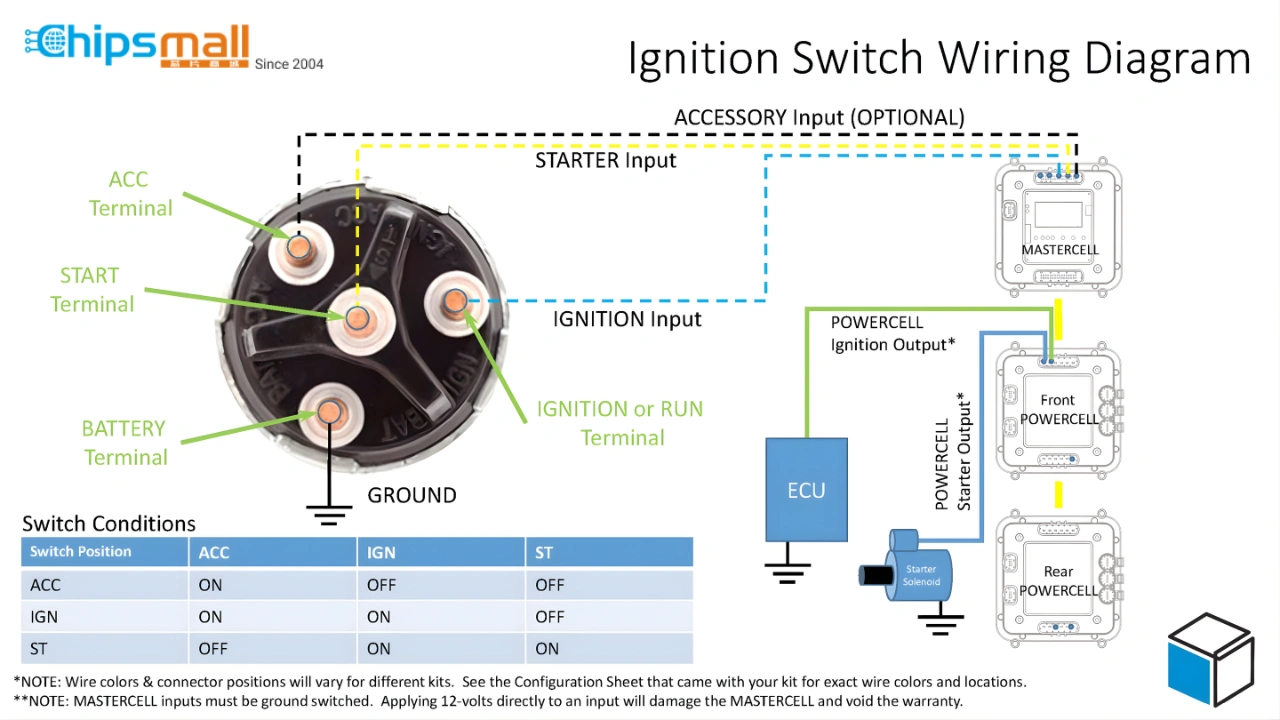

Wiring a Basic Ignition Switch

Here’s how to wire a standard 4-terminal ignition switch safely and correctly.

Step 1 – Disconnect the Battery: Before you start working, always disconnect your battery's negative (-) terminal. This safety step prevents electrical shocks, sparks, or accidental short circuits while wiring.

Step 2 – Locate the Ignition Switch Terminals: Look at the back of your ignition switch. You’ll find four marked terminals:

  • BAT – Power supply from the battery

  • IGN – Ignition system or engine circuit

  • ST – Starter motor circuit

  • ACC – Accessories (radio, lights, etc.)

Step 3 – Connect the Power (BAT): Use a 12-gauge wire to connect the BAT terminal on the ignition switch to the battery's positive terminal or the main fuse box. This supplies electrical power to the switch, allowing it to distribute current to other circuits.

Step 4 – Connect the Ignition (IGN): Next, attach a wire from the IGN terminal to the ignition coil, ECU, or engine management system. This circuit becomes active when the key is in the ON position, powering the ignition system, fuel pump, and other essential components.

Step 5 – Connect the Starter (ST): Connect the ST terminal to the starter solenoid. This wire only carries current when the key is turned to the START position. It engages the solenoid, which then activates the starter motor to crank the engine.

Step 6 – Connect the Accessories (ACC): Now, connect the ACC terminal to accessories such as the radio, fan, interior lights, or wipers. These accessories will work when the key is in the ACC or ON position, allowing you to use them without starting the engine.

Step 7 – Ground the Switch (if required): Some ignition switches have a GND (ground) terminal. If yours does, connect a black wire from this terminal to the vehicle chassis or a clean metal surface. This ensures a complete electrical circuit and prevents malfunction.

Step 8 – Reconnect the Battery and Test: Once all wires are properly connected, reattach the negative (-) terminal of your battery. Now test each key position to make sure everything works as it should:

  • ACC: The radio or other accessories should turn on.

  • ON: Dashboard lights and ignition system should activate.

  • START: The engine should crank and start.

ignition switch wiring diagram

Diagram for Ignition Switch (Keyed and Push-Button Types)

Keyed Ignition Switch: Uses a physical key to rotate through OFF → ACC → ON → START positions. Common in older vehicles.

Push-Button Start System: Uses a button and transponder key (or fob). When the button is pressed, a computer checks the key signal, then powers up the ignition and starter automatically. Even in push-button systems, the same connections (BAT, IGN, ST, ACC) exist internally.

Common Ignition Switch Problems

  1. Engine Won’t Start: If your engine doesn’t start when you turn the key, the problem could be with the ST (starter) terminal or the starter solenoid. The starter solenoid is what sends power from the battery to the starter motor. If the wire connected to the ST terminal is loose, corroded, or broken, the current won’t reach the solenoid. Likewise, if the solenoid itself is faulty, it won’t engage the starter motor to crank the engine. Make sure the wiring is tight and clean, and check the solenoid for any clicking sound or movement when turning the key.

  2. No Power to Accessories: When the radio, lights, or other accessories don’t work, it usually means there’s an issue with the ACC (accessory) terminal. This terminal supplies power to non-essential systems when the key is in the ACC or ON position. A loose, disconnected, or damaged ACC wire can interrupt this power flow. To fix it, inspect the connection for looseness or corrosion and make sure the wire is properly attached to the ACC terminal.

  3. Intermittent Power Loss: If your vehicle’s electrical systems cut in and out randomly, it might be due to corrosion or a worn-out contact inside the ignition switch. Over time, moisture, dust, and vibration can cause the internal metal contacts to weaken or corrode, leading to unstable power delivery. This can cause flickering lights, the engine stalling, or other unpredictable behavior. Cleaning the terminals or replacing the ignition switch can usually solve the problem.

  4. Key Stuck in Lock Position: If the key gets stuck and won’t turn or come out of the ignition, it’s often a mechanical issue. The problem could be with the steering lock mechanism or worn parts inside the ignition cylinder. Sometimes the steering wheel puts pressure on the lock, making it difficult to move the key. Try gently turning the steering wheel side to side while turning the key. If that doesn’t help, the ignition cylinder might need cleaning, lubrication, or replacement.

Tips for Safe Installation

  • Always label your wires before removing old ones.

  • Use a multimeter to verify voltage at each terminal.

  • Secure connections with crimp terminals and heat-shrink tubing.

  • Keep wires away from hot engine parts or moving components.

  • If unsure, consult a professional mechanic.

Conclusion

The ignition switch is a small but essential component that keeps your entire vehicle running smoothly. It not only starts the engine but also controls power distribution to vital systems such as the ignition, starter motor, and accessories. Understanding its wiring helps you troubleshoot issues and safely install or replace the switch when needed.

A properly wired ignition switch means smoother starts, safer operation, and longer electrical system life.

FAQs

Q1. Can I replace my ignition switch myself?
A: Yes, you can replace it yourself if you’re comfortable working with vehicle wiring. Just make sure to disconnect the battery first, label each wire before removal, and follow a wiring diagram carefully. If you’re unsure, it’s best to ask a professional mechanic for help.

Q2. What’s the difference between the IGN and ACC terminals?
A: The IGN (Ignition) terminal powers components needed for engine operation — like the ignition coil and fuel pump, while the ACC (Accessory) terminal powers comfort and convenience items such as the radio and wipers. The ACC circuit works even when the engine isn’t running, but the IGN circuit is active only when the car is on.

Q3. Why does my ignition switch get hot?
A: If your ignition switch feels warm or hot to the touch, it may be due to high electrical resistance caused by loose or corroded connections, or excessive current flowing through the switch. This is a warning sign; it’s best to inspect and repair the wiring before it causes further damage or a short circuit.

Q4. Can a bad ignition switch drain the battery?
A: Yes. A faulty ignition switch can leave certain circuits open even when the key is off, allowing power to keep flowing to accessories or lights. This slow drain can weaken your battery over time. If you notice your battery dying frequently, inspect the switch and connections for damage or stuck contacts
