How to Choose the Right Voltage Regulator for Your Circuit

When designing any electronic device, maintaining a stable voltage supply is essential. Voltage regulators ensure that components receive consistent power, protecting circuits from fluctuations that could cause malfunction or damage. Choosing the right voltage regulator can greatly improve circuit reliability, efficiency, and lifespan.

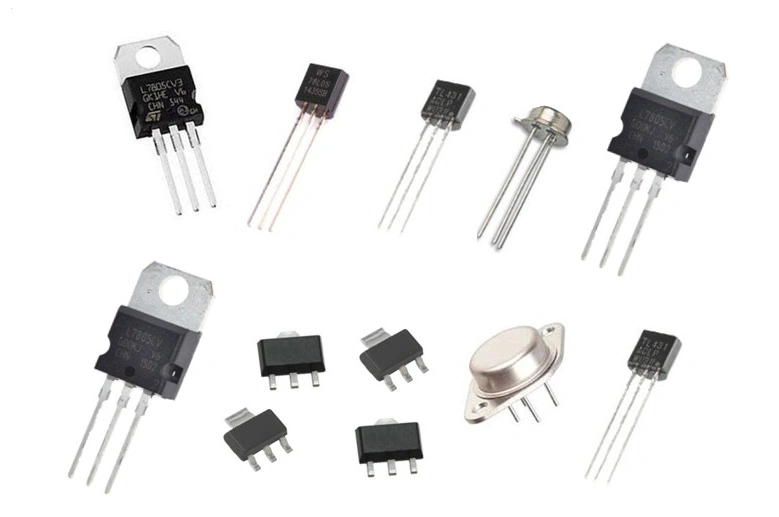

What Is a Voltage Regulator?

A voltage regulator is an electronic component that automatically maintains a constant output voltage, regardless of changes in load or input voltage. It acts as a control system that ensures all parts of the circuit operate safely and efficiently.

There are two main types of voltage regulators: linear regulators and switching regulators. Each serves a unique purpose depending on the design requirements.

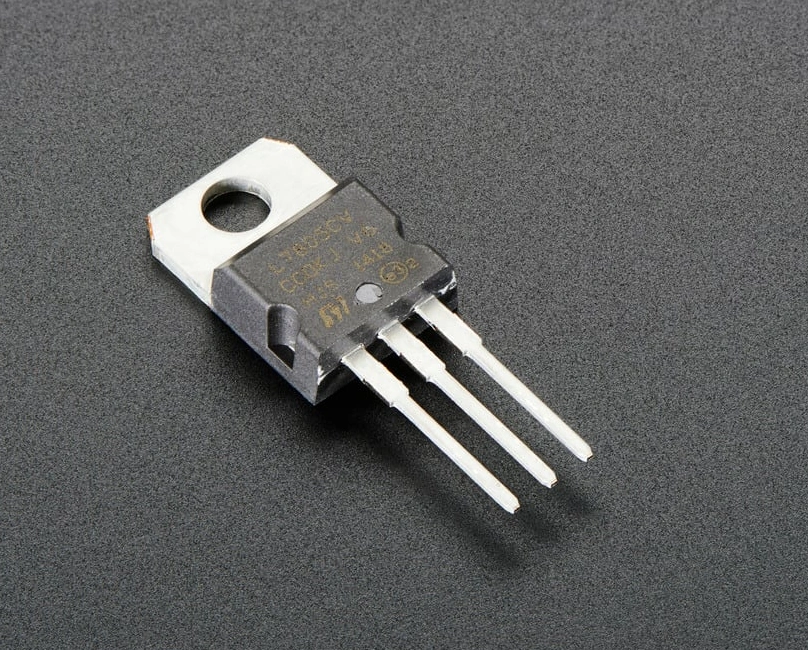

Linear Voltage Regulators

Linear regulators are simple, cost-effective, and ideal for low-noise applications. They operate by dissipating excess power as heat to maintain a stable output.

Advantages:

• Low output noise

• Easy to design and implement

• Fast transient response

Disadvantages:

• Low efficiency (especially with large voltage differences)

• Generates heat that requires additional cooling

Linear regulators are often used in audio circuits, sensors, and low-power analog devices, where clean power is more important than efficiency.

Switching Voltage Regulators

Switching regulators convert voltage using high-frequency switching transistors, making them much more efficient. They can step up (boost), step down (buck), or invert the input voltage as needed.

Advantages:

• High efficiency (up to 90% or more)

• Suitable for high-current and battery-powered systems

• Can generate multiple output voltages

Disadvantages:

• More complex circuit design

• Can introduce noise without proper filtering

Switching regulators are widely used in computers, industrial control systems, LED drivers, and portable electronics where efficiency is critical.

Key Factors to Consider When Selecting a Voltage Regulator

1. Input and Output Voltage
   Ensure the regulator supports your input voltage range and can deliver the desired output voltage precisely.

2. Output Current Requirement
   Choose a regulator that can handle the maximum load current without overheating.

3. Efficiency and Power Dissipation
   For battery-powered or energy-sensitive designs, switching regulators are often the better choice.

4. Noise Sensitivity
   If your circuit involves analog or audio components, a low-noise linear regulator might be preferable.

5. Thermal Performance
   Consider heat sinks or thermal pads if the regulator operates at high current or voltage differences.

6. Package Type and Size
   Choose a package (e.g., TO-220, SOT-223, or QFN) that fits your PCB layout and thermal design needs.

Common Applications of Voltage Regulators

Voltage regulators are essential across a wide range of electronic products, including:

• Microcontrollers and embedded systems

• Power supply units (PSUs)

• LED lighting systems

• Automotive electronics

• Communication devices

Final Thoughts

Choosing the right voltage regulator is a balance between performance, efficiency, and design simplicity. Linear regulators are perfect for low-noise, low-power designs, while switching regulators are ideal for efficient, high-current applications.

When sourcing components, always select from trusted distributors that provide genuine parts and detailed datasheets. A reliable voltage regulator not only powers your circuit but also ensures the long-term stability and safety of your entire system.
