How to Wire an Electrical Outlet in Series

In every household, almost everything works with electricity. Have you ever wondered how appliances, lights, and other devices get their power? Electricity travels through cables that connect the circuit breaker to each outlet. Sometimes, you may need a new outlet for a fridge, freezer, or extra sockets. One way to do this is by connecting it to an existing outlet, which is called wiring an outlet in series. This is a safe and reliable method to add more power points to your home. People with basic wiring knowledge and DIY skills can do this safely.

Understanding Electrical Wiring

Before you start wiring an outlet in series, it is important to understand the wires you will be working with. Each wire has a specific role, and knowing how they function will help you make safe and correct connections so electricity flows properly through your home.

Types of Wires

1. Hot Wire (Black or Red): The hot wire carries electricity from the circuit breaker to the outlet. It is the “live” wire that provides power to your devices. Be very careful when handling this wire, because it can cause an electric shock if the power is on.

2. Neutral Wire (White): The neutral wire completes the electrical circuit by carrying electricity back to the breaker. It works together with the hot wire to allow current to flow through your appliances and devices safely.

3. Ground Wire (Bare Copper or Green): The ground wire is a safety feature. It does not normally carry electricity. Instead, it protects you by directing stray electricity safely into the ground if something goes wrong, such as a short circuit or damaged wire.

Screws on the Outlet

Outlets have screws to connect each wire properly:

• Brass Screws: The hot wire is attached here. These screws carry the electricity into the outlet.

• Silver Screws: The neutral wire is connected here. These screws complete the circuit back to the breaker.

• Green Screw: The ground wire is connected here. This ensures safety by preventing electrical shocks.

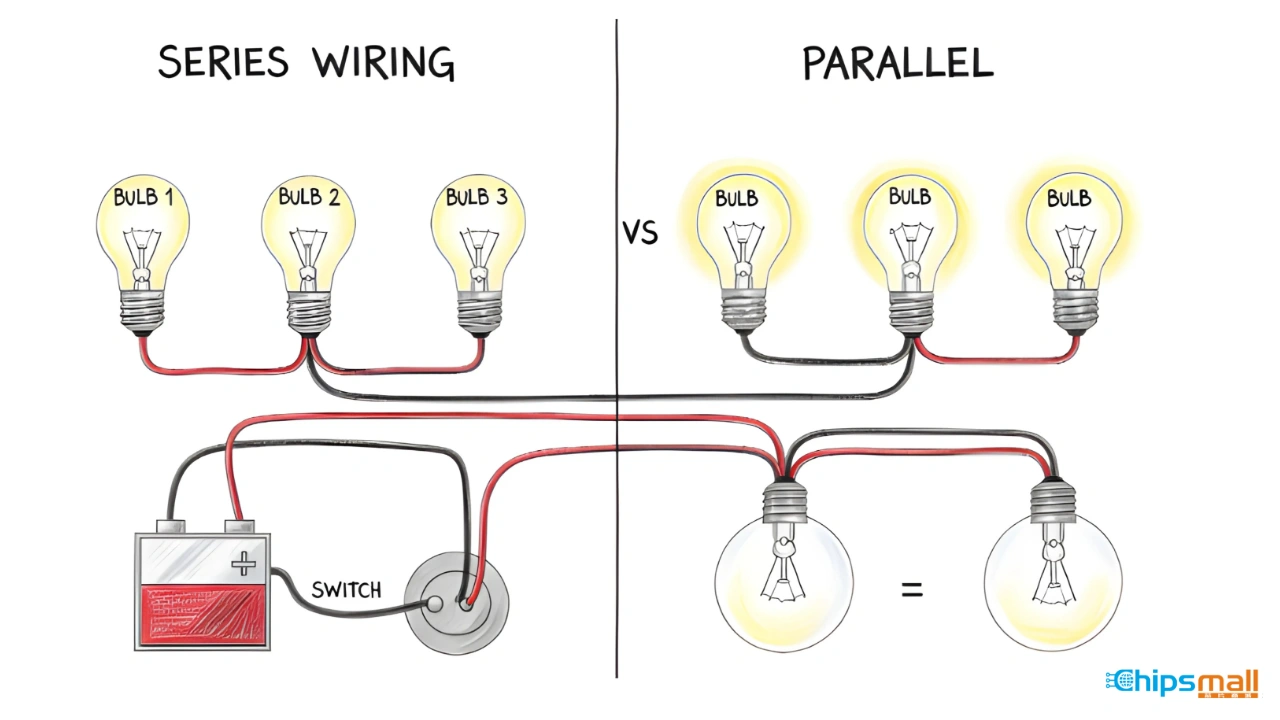

Types of Wiring

Now that you know the wires, it’s also helpful to understand the two main wiring methods:

1. Series Wiring: Outlets are connected one after another. Electricity passes through each outlet in turn. If one outlet fails, all the outlets after it stop working.

2. Parallel Wiring: Each outlet connects directly to the power source. If one outlet fails, the others continue working. This is the method most electricians prefer because it is safer and more reliable.

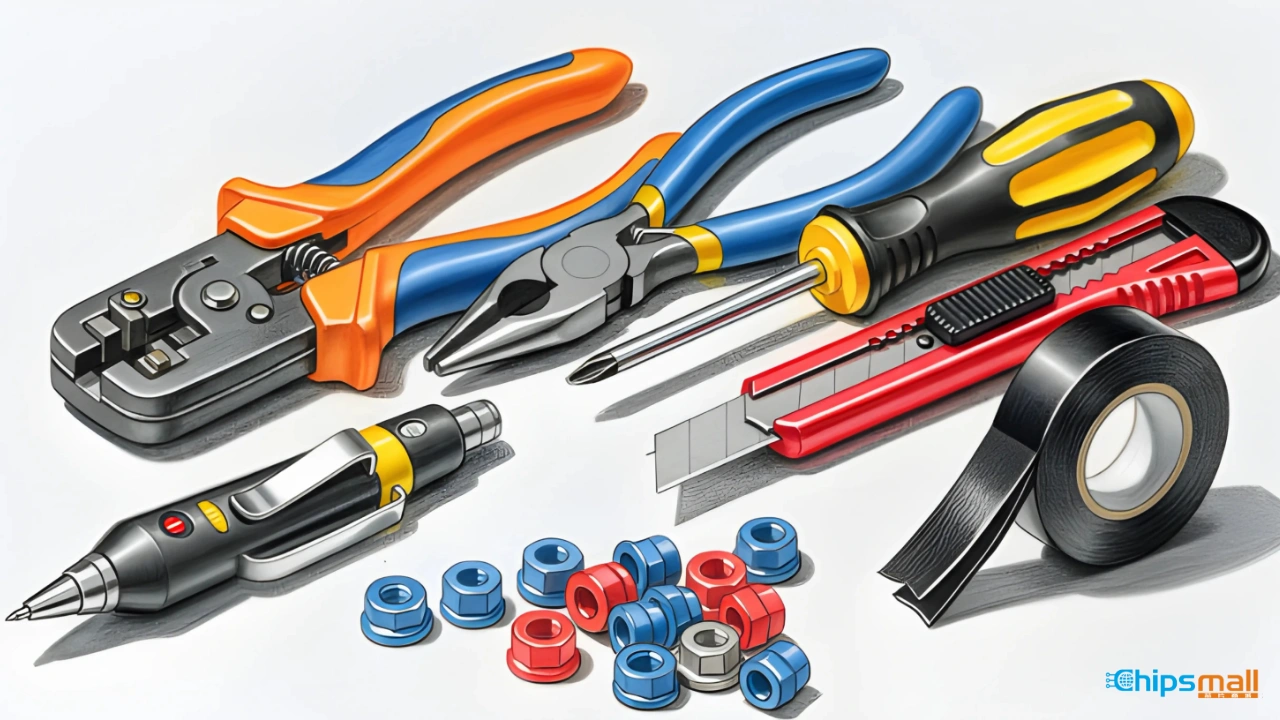

Tools and Materials You Will Need

Before starting the wiring process, it’s important to gather all the right tools and materials. Having these ready will make the job easier and safer.

• Wire Stripper: Used to remove the plastic coating from the ends of the wires so they can be connected properly.

• Needle-Nose Pliers: Helpful for bending wires, holding them in place, and making small adjustments when attaching wires to screws.

• Screwdriver: Needed to remove the outlet cover, loosen or tighten outlet screws, and secure the wires in place.

• Utility Knife: Can be used to carefully cut and remove the outer insulation from electrical cables if needed.

• Voltage Tester: A safety tool that checks whether the power is on or off. Always test before touching any wires.

• Electrical Tape: Used to wrap around wire connections or exposed ends to keep them insulated and safe.

• Wire Nuts (if needed): Small caps that twist over wire ends to hold them together securely.

• Replacement Outlet and Cover Plate: The new outlet and its cover plate that you will install to finish the job neatly.

​

Safety Tips

Working with electricity can be dangerous if you are not careful. Before you start wiring an outlet, always keep safety first. Here are the most important steps to follow:

• Turn Off the Power: Go to your main electrical panel and switch off the breaker that controls the circuit you are working on. This will cut off electricity to the outlet and prevent shocks.

• Test for Power: Even after turning off the breaker, never assume the wires are safe. Use a voltage tester on the outlet to confirm that no electricity is flowing before touching any wires.

• Work in a Dry Area: Make sure your hands are dry and the area around you is free of water. Moisture increases the risk of electric shock.

• Wear Safety Gear: If possible, wear rubber-soled shoes and safety gloves for extra protection.

• Stay Organized: Keep your tools and wires neat while working. A clean workspace reduces mistakes and accidents.

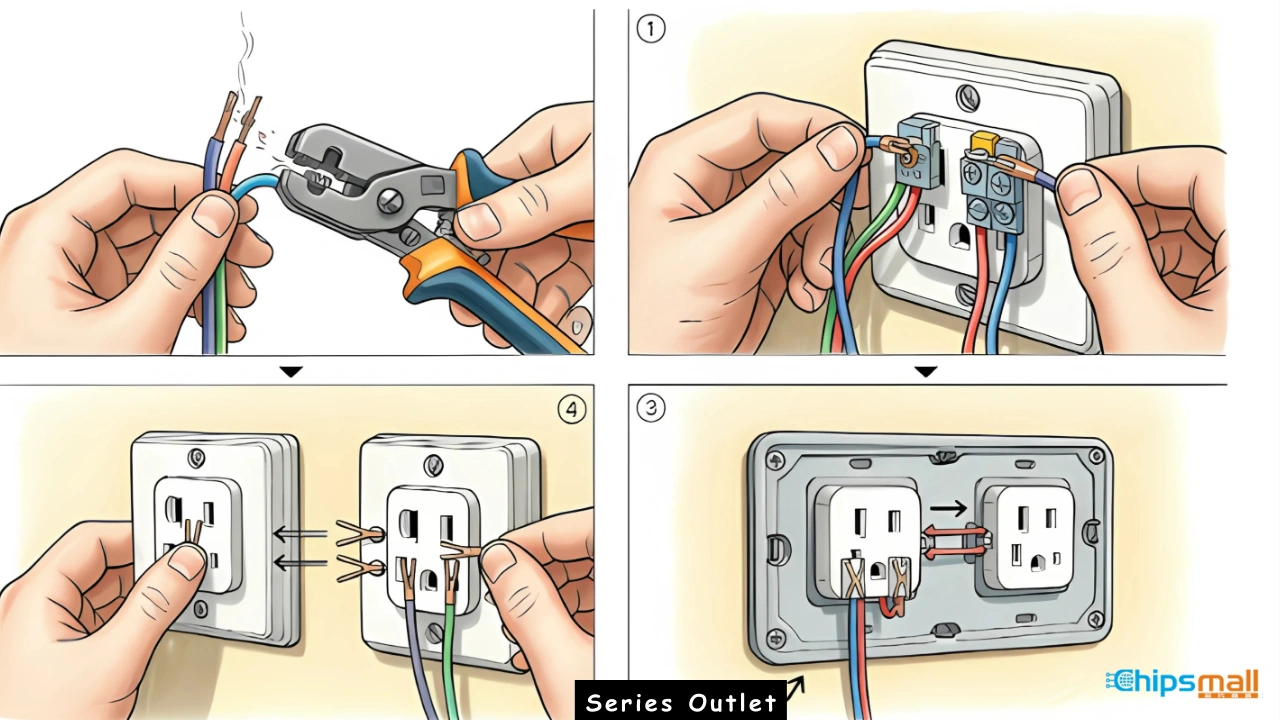

Step-by-Step Guide: How to Wire an Electrical Outlet in Series

1. Prepare the Wires: Start by stripping about three-quarters of an inch of insulation from the ends of the hot, neutral, and ground wires. This will expose enough copper for a proper connection. Use pliers to bend the ends of the hot and neutral wires into small hooks. These hooks will make it easier to attach the wires securely to the screws on the outlet.

2. Connect the Ground Wire: The ground wire is either bare copper or green in color. Attach this wire to the green screw on the outlet. If the circuit is continuing to another outlet, you can add the next ground wire to the same screw, but it’s safer to use a short jumper wire. This ensures all ground wires stay properly connected and reduces the risk of a loose connection.

3. Connect the Neutral Wire: Next, take the white neutral wire and connect it to the silver screw on the outlet. If the wiring continues to another outlet, you will need to connect both the incoming and outgoing neutral wires. This can be done using a jumper wire, which makes the connection more secure and avoids overloading a single screw.

4. Connect the Hot Wire: Now connect the black hot wire to the brass screw on the outlet. Just like with the neutral wire, both the incoming and outgoing hot wires can be connected here. Again, using a jumper wire is the best option, as it ensures a firm connection and reduces the chances of overheating at the screw terminal.

5. Secure the Outlet: Once all the wires are connected, carefully fold them back into the electrical box. Be gentle to avoid loosening the connections. After the wires are tucked inside, screw the outlet into place firmly. Finally, attach the cover plate to give the outlet a neat and finished look.

6. Restore Power and Test: Go back to your electrical panel and turn the breaker back on. Once the power is restored, use a voltage tester to check the outlet. This step confirms that the outlet is wired correctly and is delivering electricity safely.

​

Things to Watch After Series Wiring

After wiring an outlet in series, always double-check your work. Make sure all wire connections are tight, as loose connections can lead to overheating and even fire hazards.

If your electrical box has multiple cables, avoid attaching more than one wire directly under a screw. Instead, use jumper wires to make the connections cleaner and more secure.

For wiring in series, the terminal screws are the only way voltage passes from one receptacle to another. This means that if one outlet breaks or malfunctions, all the outlets connected after it will stop working as well.

When to Call a Professional

While many people with basic DIY skills can wire an outlet, there are times when it’s safer to call a licensed electrician. Professional help is important if you are unsure about any step or if the wiring in your home is complicated. Knowing when to stop and call an expert can save time, prevent costly mistakes, and most importantly, keep your home safe.

• If you cannot identify the wires: Hot, neutral, and ground wires are usually easy to recognize by their colors. But in some homes, the wires may be faded, painted over, or not marked at all. If you are not sure which wire is which, do not guess—call an electrician.

• If your wiring is old or damaged: Older homes may have outdated wiring that doesn’t meet modern safety standards. Damaged wires, frayed insulation, or loose connections can also be dangerous. A professional can repair or replace these safely.

• If the outlet box has too many cables: Sometimes an outlet box contains multiple cables running in different directions. This can make the wiring confusing and hard to organize. An electrician has the experience to handle complex wiring without creating hazards.

Final Thoughts

Learning how to wire an electrical outlet in series can help you add more outlets to your home when needed. By carefully following the steps, using the right tools, and keeping safety in mind, you can complete the job with confidence. However, electricity can be dangerous if handled incorrectly. If you ever feel uncertain or run into complicated wiring, calling a licensed electrician is always the safest choice.

FAQs

Q1. What is the difference between series and parallel wiring?
A: Series wiring connects outlets one after another, so if one outlet fails, the others won’t work. Parallel wiring connects each outlet directly to the power source, so one outlet can fail without affecting the others.

Q2. Which type of wiring is better for home outlets?
A: Parallel wiring is better and is the standard method used by electricians. It is safer, more reliable, and ensures each outlet gets the proper voltage.

Q3. Can I wire outlets myself, or should I call an electrician?
A: If you have basic DIY and wiring knowledge, you can wire an outlet yourself. However, if you are unsure about any step or if your wiring looks old or complicated, it’s best to call a licensed electrician.

Q4. Why is the ground wire important?
A: The ground wire protects you from shocks. If electricity accidentally escapes the normal path (like during a short circuit), the ground wire directs it safely into the ground instead of through you.

Q5. How can I check if my outlet is wired correctly?
A: You can use a voltage tester or an outlet tester (a small tool available at hardware stores) to make sure your outlet is properly wired and safe to use
