USB Connector Pins Diagram: Wiring, Types, and Functions

The USB is one of the most widely used interfaces for connecting devices, transferring data, and supplying power. Its popularity comes from its plug-and-play nature, speed, and ability to support a wide range of peripherals, from keyboards and flash drives to smartphones and cameras. Over the years, USB has become the standard choice because it simplifies connections, eliminates the need for multiple types of ports, and provides reliable power delivery.

Understanding the USB connector pins diagram is especially important for troubleshooting, DIY electronics projects, and device repairs, since each pin has a specific role in data transfer and power flow. A simple diagram can make it much easier to identify the pins, their colors, and their functions.

What is a USB

A Universal Serial Bus (USB) is a standardized interface that allows computers and electronic devices to connect, transfer data, and supply power through a single port. It was first introduced in the mid-1990s by a group of major tech companies to replace the clutter of older connection methods like serial and parallel ports.

USB Specifications and Data Transfer Speeds

USB has evolved significantly since its introduction, with each new version offering faster data transfer rates and improved functionality. Understanding USB specifications and their corresponding speeds is essential for choosing the right USB type for your devices and ensuring optimal performance. Higher speeds mean faster file transfers, smoother video streaming, and better performance for power-hungry peripherals.

USB Specifications and Data Transfer Speeds

Why Higher Bandwidth Matters: Higher bandwidth is crucial for modern devices that handle large amounts of data, such as 4K/8K video cameras, gaming consoles, external storage devices, and VR headsets.

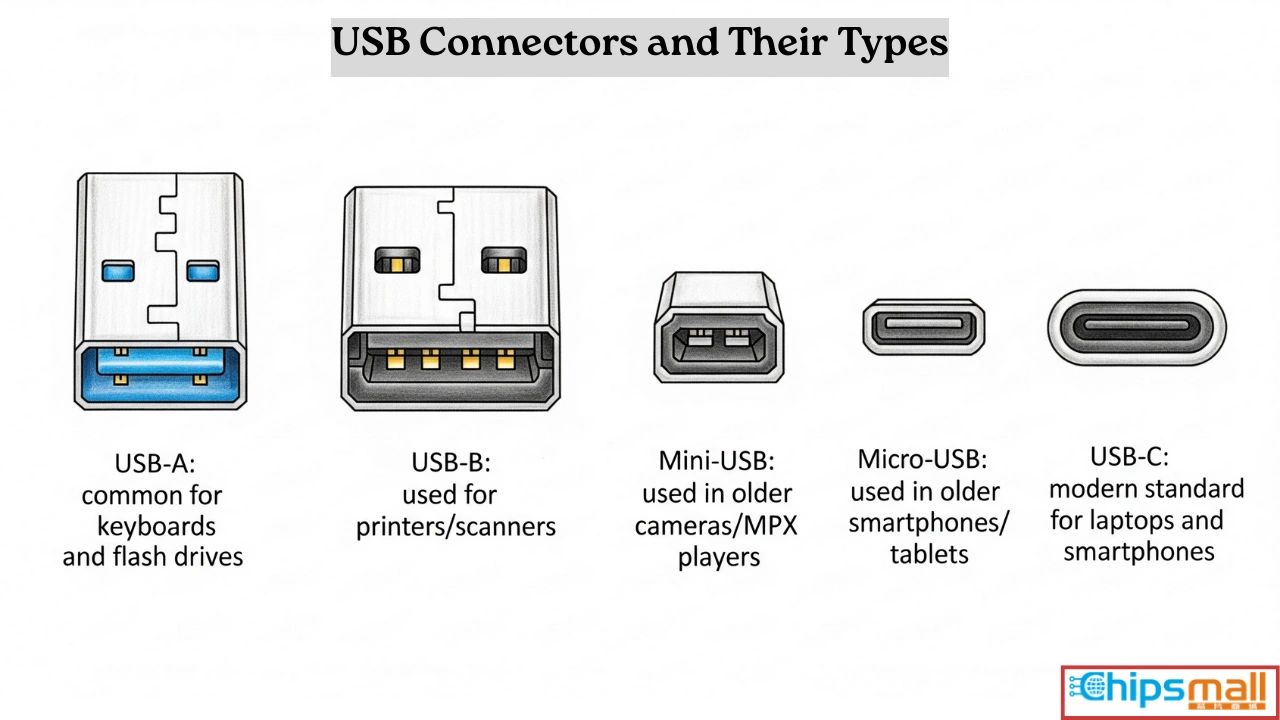

USB Connectors and Their Types

USB connectors come in various shapes and sizes, each designed for specific devices and applications. Understanding the different types can help you choose the right cable or port for your device.

• Standard USB-A: The most common and recognizable USB connector is the rectangular USB-A. It is typically used for connecting peripherals to computers, such as keyboards, mice, flash drives, and external hard drives. USB-A ports are found on almost all PCs and laptops and serve as the standard “host” connector for data transfer and power delivery.

• USB-B: USB-B connectors are square-shaped with slightly beveled corners and are mainly used to connect devices like printers, scanners, and some external hard drives to a host computer. This type of connector is less common for personal electronics but is still widely used in office and professional setups.

• Mini-USB: Mini-USB was popular in older digital cameras, MP3 players, and some early mobile devices. It is smaller than USB-A and USB-B, providing a more compact connection for portable electronics. Over time, mini-USB has mostly been replaced by micro-USB and USB-C due to their smaller size and higher performance.

• Micro-USB: Micro-USB became the standard for smartphones, tablets, and small gadgets before the rise of USB-C. It is very compact and supports both data transfer and charging. Micro-USB connectors come in Type-A and Type-B shapes, and most smartphones in the 2010s used micro-USB for charging and syncing.

• USB-C: USB-C is the newest and most versatile USB connector. It is small, reversible, and supports much higher data transfer speeds, power delivery, and even audio/video signals. USB-C is becoming the universal standard for modern devices, including smartphones, laptops, tablets, and external peripherals. Its reversible design eliminates the frustration of incorrect orientation, and its enhanced capabilities make it suitable for a wide range of applications.

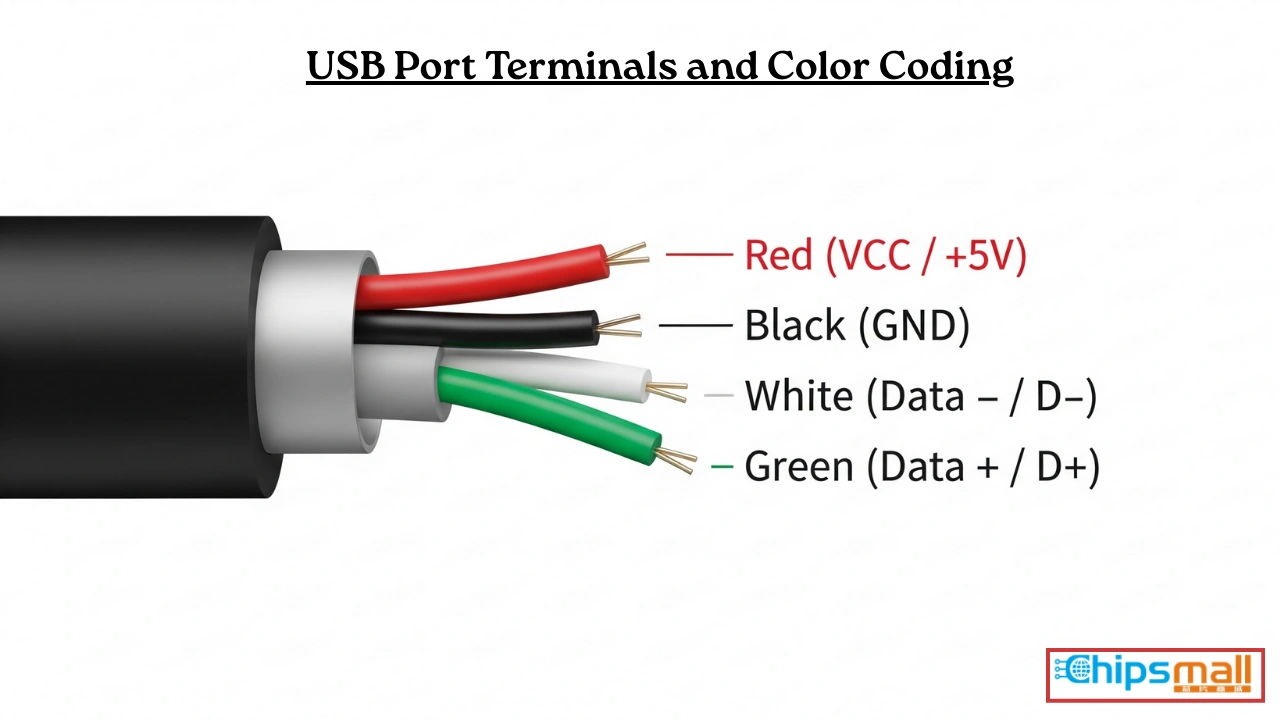

USB Port Terminals and Color Coding

A standard USB 2.0 cable typically has four terminals, each with a specific function. These terminals are usually color-coded to make wiring and identification easier:

• Red (VCC / +5V): This terminal provides a 5V DC power supply to the connected device, allowing it to operate without a separate power source.

• Black (GND): The ground terminal completes the electrical circuit, enabling current to flow safely between the host and the device.

• White (Data - / D-): This terminal carries the negative data signal and works together with the green terminal to transmit information.

• Green (Data + / D+): The positive data signal travels through this terminal, completing the differential pair necessary for reliable data transfer.

Note: It is important to note that some manufacturers may use slightly different color codes, such as red/orange for VCC, black/blue for GND, or white/gold for D-, but the functional roles remain the same.

The combination of VCC and GND supplies power, while D+ and D- handle bidirectional data transfer. The differential signaling of D+ and D- ensures that data can be transmitted reliably even in electrically noisy environments, which is why USB can maintain stable communication across a variety of devices.

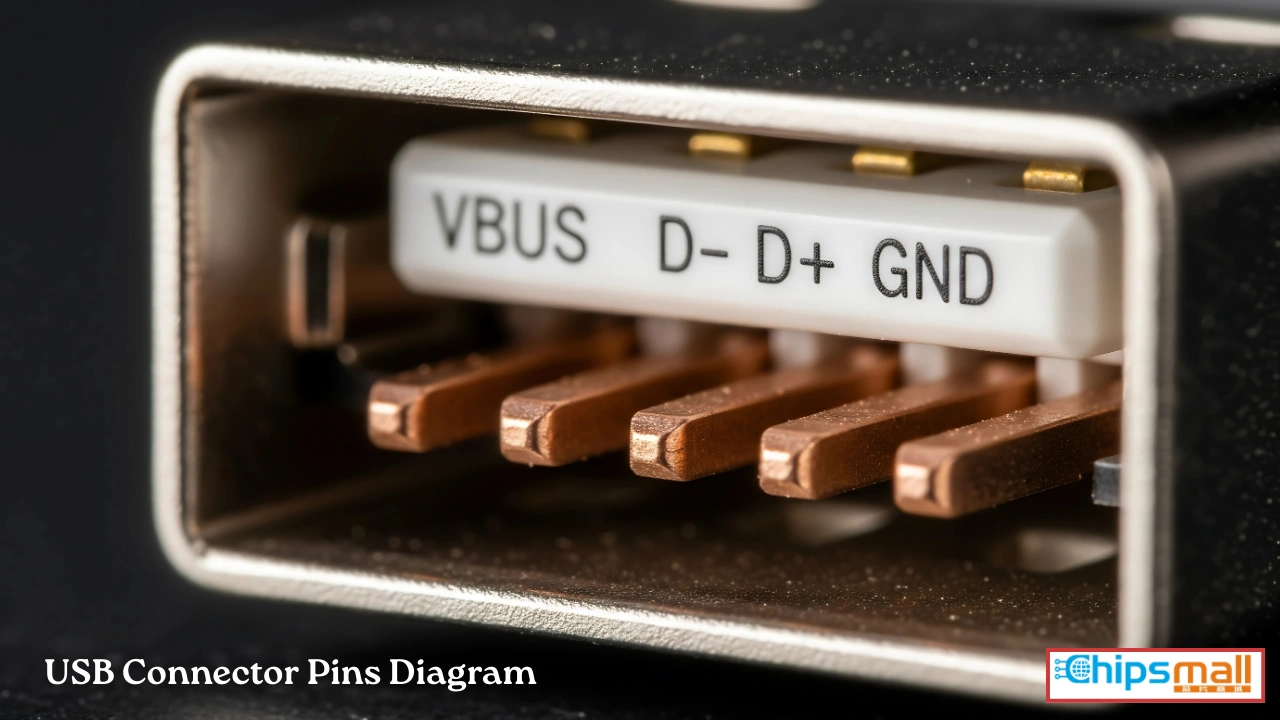

USB Pinout Diagrams

1. USB Type-A Pinout: The standard USB Type-A connector is rectangular and most commonly used in computers and chargers. It features a 4-pin layout, with pins numbered from right to left when looking into the connector.

VCC and GND provide power to the connected device. D+ and D- carry differential data signals for reliable communication.

2. USB Type-B Pinout: USB Type-B connectors are square-shaped and commonly used in printers, scanners, and some external drives. It also has 4 pins, but the orientation differs from Type-A. Pin functions remain the same: VCC, D-, D+, and GND.

3. Micro-USB Pinout: Micro-USB connectors, used in older smartphones and compact devices, have 5 pins: VCC, D-, D+, ID, and GND. VCC and GND provide power, while D+ and D- handle data transfer. The ID pin determines the role of the device: if grounded, the Micro-USB acts as a peripheral (Micro-B); if floating, it can act as a host (Micro-A), enabling On-The-Go (OTG) functionality.

4. USB 3.0 / 3.1 Pinout: USB 3.0 and 3.1 connectors add 5 extra pins to the standard 4-pin layout, totaling 9 pins, to support SuperSpeed data transfer (up to 5–10 Gbps). The original 4 pins provide backward compatibility with USB 2.0 devices. The extra 5 pins form RX/TX SuperSpeed differential pairs, allowing simultaneous data transmission in both directions for high-speed peripherals.

5. USB Type-C Pinout: USB Type-C is the latest standard, featuring a 24-pin layout in a small, reversible, symmetrical connector. Multiple VBUS and GND pins provide higher power delivery, and several SuperSpeed pairs support fast data transfer. CC1 and CC2 pins are used for detecting cable orientation, negotiating power roles (source or sink), and enabling alternate modes like DisplayPort or Thunderbolt. The design of USB-C makes it versatile for charging, high-speed data, and audio/video transmission, all within a single connector.

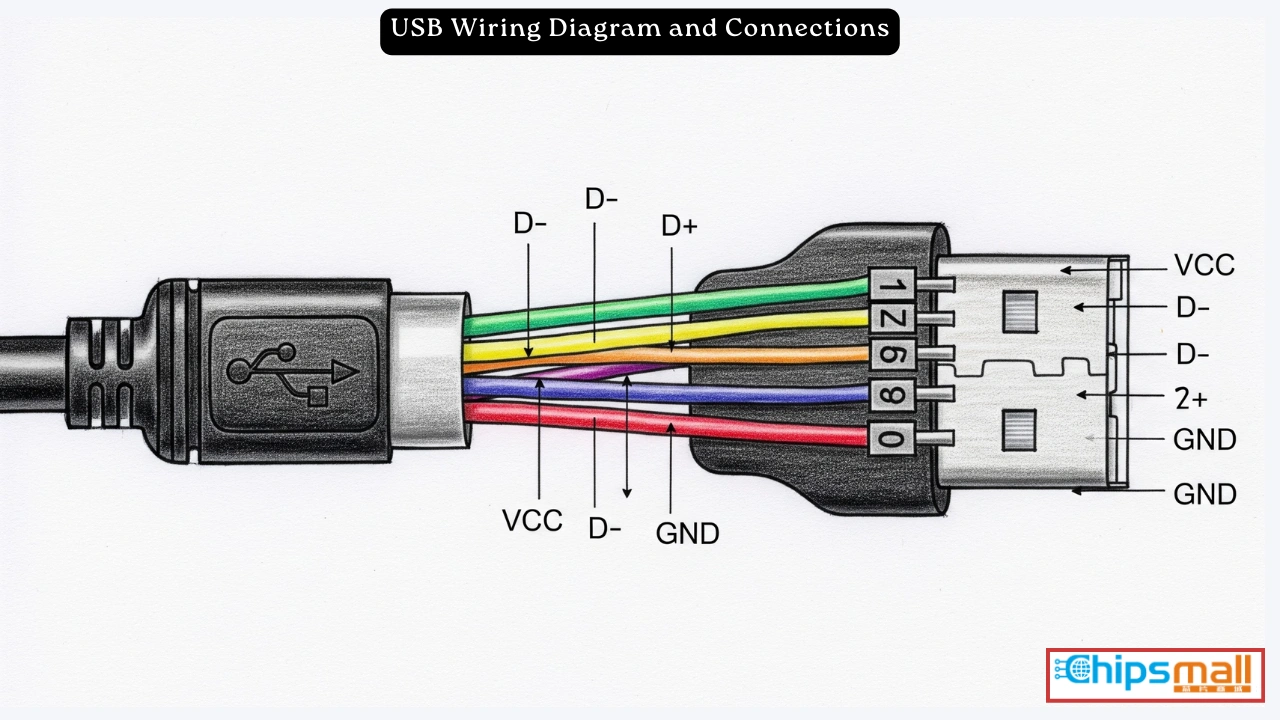

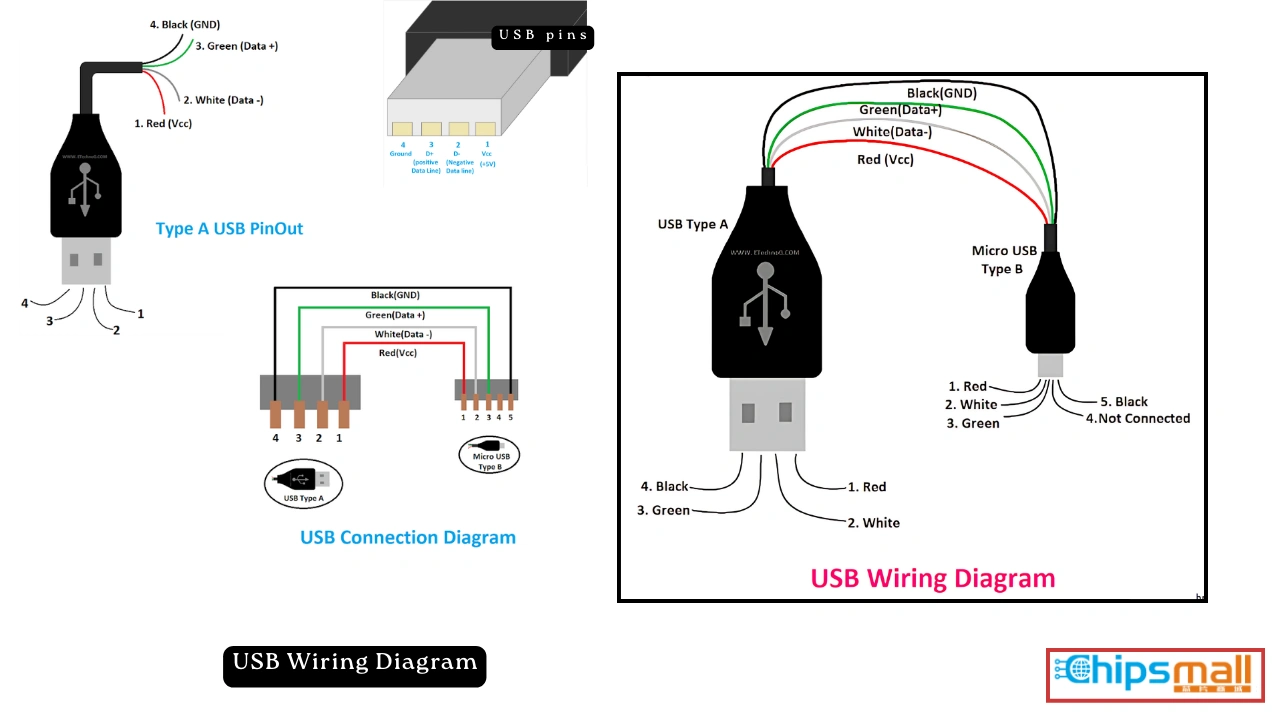

USB Wiring Diagram and Connections

USB wiring defines how the host device (usually a computer) communicates with peripherals while supplying power. A standard USB cable typically has four main wires: two for power (VCC and GND) and two for data (D+ and D-).

Standard USB Wiring

• Type-A to Type-B: The Type-A connector connects to the host, while the Type-B connector plugs into a peripheral like a printer or external hard drive. The wiring ensures that VCC and GND lines provide power from the host to the device, while D+ and D- transmit data signals.

• Type-A to Micro-B: Common in smartphones and smaller devices, this cable follows the same principle but with the Micro-B connector on the device end.

Power vs Data Lines

• VCC (+5V) and GND: These lines supply electrical power, allowing devices to operate without an external power source.

• D+ and D-: These lines form a differential pair for data transfer. Using a twisted pair reduces electrical noise and ensures reliable communication even in electrically noisy environments. Twisting D+ and D- together helps cancel out electromagnetic interference from surrounding electronics, which is critical for maintaining data integrity over longer cable runs.

USB Hub and Multiple Device Connections

A USB hub allows you to connect several devices to a single USB port on your computer. It expands the number of available ports, making it easier to use multiple peripherals at the same time.

The hub has two main parts:

1. Hub controller: Communicates with the computer and manages data transfer between all connected devices.

2. Hub repeater: Supports reset, suspend, and resume signals, helping maintain stable connections.

Power Distribution to Multiple Devices: USB hubs share the power from the computer’s USB port among all connected devices. Each device gets enough current to function, but the total power is limited by the host port.

When to Use Externally Powered Hubs: If you want to connect more than 2–3 devices, or devices that need higher power (like external hard drives), an externally powered hub is recommended. It has its own power supply, so devices receive enough current without overloading the computer’s USB port.

Practical Applications and Importance of Pinout Knowledge

• DIY Electronics and Arduino Projects: Knowing USB pinouts is very useful for building gadgets or connecting sensors. Understanding which pin carries power and which carries data ensures devices work correctly.

• Repairing or Making Custom USB Cables: Pinout knowledge helps when creating or repairing USB cables. Correctly matching wires to pins allows safe and functional connections for specific devices.

• Troubleshooting Faulty Connections: If a device is not recognized or data transfer fails, checking wiring and pin connections can quickly identify the problem.

• Safe Power Delivery: USB provides a standard 5V, but incorrect connections or overloaded ports can damage devices. Knowing which pins supply power and which carry data reduces the risk of overcurrent and keeps devices safe.

​

Safety Considerations

• Importance of Correct Wiring: Correct wiring is crucial when working with USB cables or devices. Connecting the wrong pins can prevent the device from working or even cause permanent damage.

• Risk of Short Circuits: Misconnecting pins can lead to short circuits, which may damage both the USB device and the host computer. Power and ground lines are especially critical, as mistakes here can burn circuits or cause overheating.

• Double-Check Pinouts: Always verify the pinout before soldering, modifying, or repairing USB cables. Using a multimeter or referring to trusted diagrams ensures connections are correct and safe. Taking these precautions prevents damage, ensures reliable operation, and protects both the user and the electronics.

If you’re interested in building your own USB devices, repairing electronics, or working on DIY projects that involve USB technology, Chipsmall is a reliable source for high-performance ICs, connectors, and other electronic components used in USB applications.

Conclusion

USB connector pin diagrams are more than just technical drawings; they are a map that reveals how devices communicate and share power. By studying them, you not only learn which pins do what but also gain the skills to design, modify, or safely upgrade USB connections. Understanding these diagrams lets you work confidently with USB devices and ensures your electronics stay safe and reliable.

FAQs

Q1: What is a USB connector pin diagram?
A: A USB connector pin diagram shows the layout of pins in a USB connector and explains what each pin does. It helps you understand how power and data flow through the cable.

Q2: Why is it important to know USB pinouts?
A: Knowing USB pinouts helps you repair cables, build custom connections, and avoid mistakes that could damage devices. It ensures safe and correct connections.

Q3: Can I use a USB pin diagram for all USB types?
A: Each USB type (A, B, Micro, USB-C) has a different pin layout. Diagrams are specific to each type, so you need the correct one for the device or cable you’re working with.

Q4: How do USB pin diagrams help with electronics projects?
A: USB pin diagrams show which pins carry power and which carry data. This information allows you to connect devices correctly, design projects, and troubleshoot problems safely
